Web UI Reference

Reference for the Angos web interface.

Configuration

[ui]
enabled = true
name = "My Registry"

Option	Type	Default	Description
`enabled`	bool	`false`	Enable the web interface
`name`	string	`"Angos"`	Registry name displayed in the top bar

[ui.oidc]
provider = "dex"
client_id = "angos-ui"

Option	Type	Default	Description
`provider`	string	required	The `auth.oidc` provider to sign in against
`client_id`	string	required	The provider's public client, holding no secret
`scopes`	string	`"openid profile email"`	The OAuth `scope` parameter, verbatim

provider names a configured [auth.oidc.<name>] section and the registry refuses to start when no such provider exists. The issuer is read from it, so the browser can only be sent to an issuer the registry validates tokens from.

Without this section the UI offers no sign-in and sends no credentials, which is what a registry readable anonymously or fronted by an authenticating proxy wants.

URL Structure

URLs follow Docker reference format:

URL	View	Description
`/`	Repository list	All configured repositories
`/{repository}`	Namespace list	Images within a repository
`/{repository}/{namespace}`	Manifest list	All manifests for an image
`/{repository}/{namespace}:{tag}`	Manifest details	Manifest by tag
`/{repository}/{namespace}@{digest}`	Manifest details	Manifest by digest
`...#history`, `...#vulnerabilities`, `...#filesystem`	Manifest details	A manifest's Pull History, Vulnerabilities or Filesystem tab; no anchor opens the OCI tab, and `...#vulnerabilities/linux/arm64` one platform's report of an index
`/jobs/{queue}`	Jobs	Pending and failed jobs of the `cache`, `replication` or `scan` queue; `/jobs` opens the cache queue

Examples:

/ - List all repositories
/library - List namespaces in the "library" repository
/library/nginx - List all nginx manifests
/library/nginx:latest - Details for the latest tag
/library/nginx@sha256:abc123... - Details for a specific digest

API Endpoints

UI Configuration

GET /v2/_angos/ui/config

Returns the UI configuration.

Response:

{
  "name": "My Registry",
  "oidc": {
    "issuer": "https://dex.example.com",
    "client_id": "angos-ui",
    "scopes": "openid profile email"
  }
}

The oidc object is present only when [ui.oidc] is configured. Every field in it is public by nature: the client holds no secret. The endpoint itself needs no credentials, since the UI reads it before anyone has signed in.

Static Assets

Static assets have no dedicated URL prefix. Every GET or HEAD request outside the API routes (/v2/..., /healthz, /readyz, /metrics) serves the embedded single-page app, falling back to index.html for paths that match no bundled asset.

Access Control Actions

UI-specific actions for access policies:

Action	Description
`ui-asset`	Static files (JS, CSS, images)
`ui-config`	UI configuration endpoint (`/v2/_angos/ui/config`)
`list-repositories`	Repository list view
`list-namespaces`	Namespace list view
`list-revisions`	Manifest list view
`list-uploads`	Active uploads view

Allowing list-repositories and list-namespaces does not expose every repository: both listings serve a repository only while it holds a namespace the caller could list tags under. A repository whose access_policy denies them stays out of the UI and answers as an absent one when opened directly, and so does a repository that is simply empty, which is what keeps the two apart from being told apart.

Minimal Policy for UI Access

[global.access_policy]
default = "deny"
rules = [
  # Allow UI to load
  "request.action == 'ui-asset' || request.action == 'ui-config'",

  # Allow authenticated users to browse
  "identity.username != null && request.action.startsWith('list-')",

  # Allow reading manifests
  "identity.username != null && request.action == 'get-manifest'"
]

Read-Only Policy

rules = [
  "request.action == 'ui-asset' || request.action == 'ui-config'",
  "identity.username != null && request.action.startsWith('list-')",
  "identity.username != null && request.action == 'get-manifest'",
  "identity.username != null && request.action == 'get-referrers'",
  "identity.username != null && request.action == 'get-blob'"
]

Full Access Policy

rules = [
  "request.action == 'ui-asset' || request.action == 'ui-config'",
  "identity.username != null"
]

Views

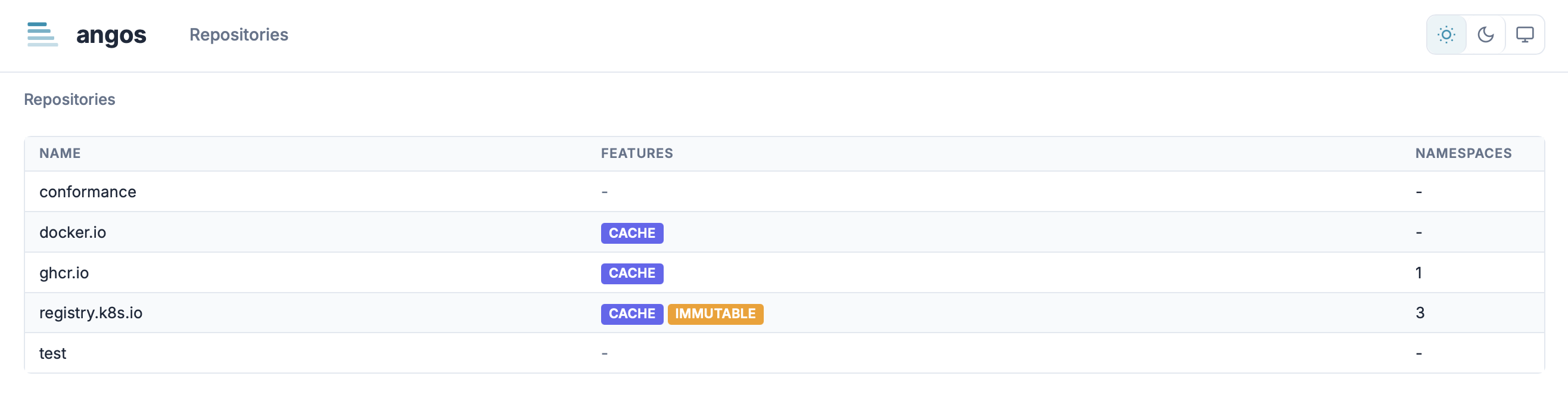

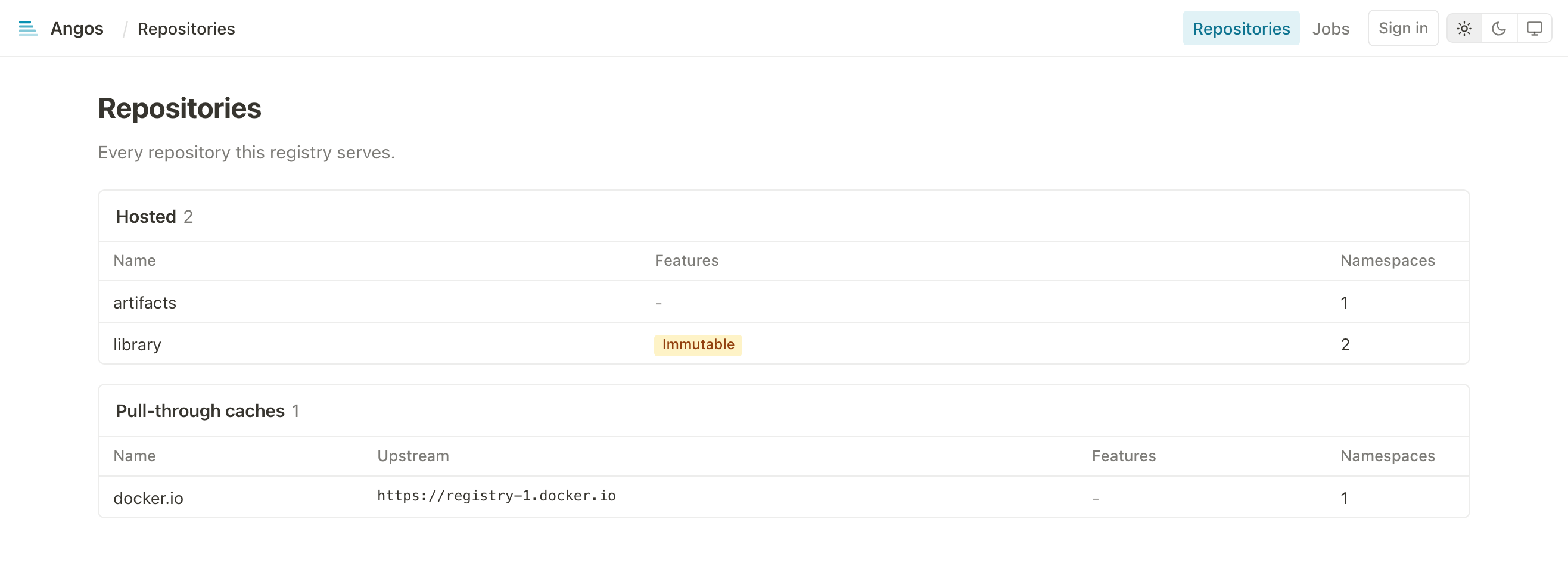

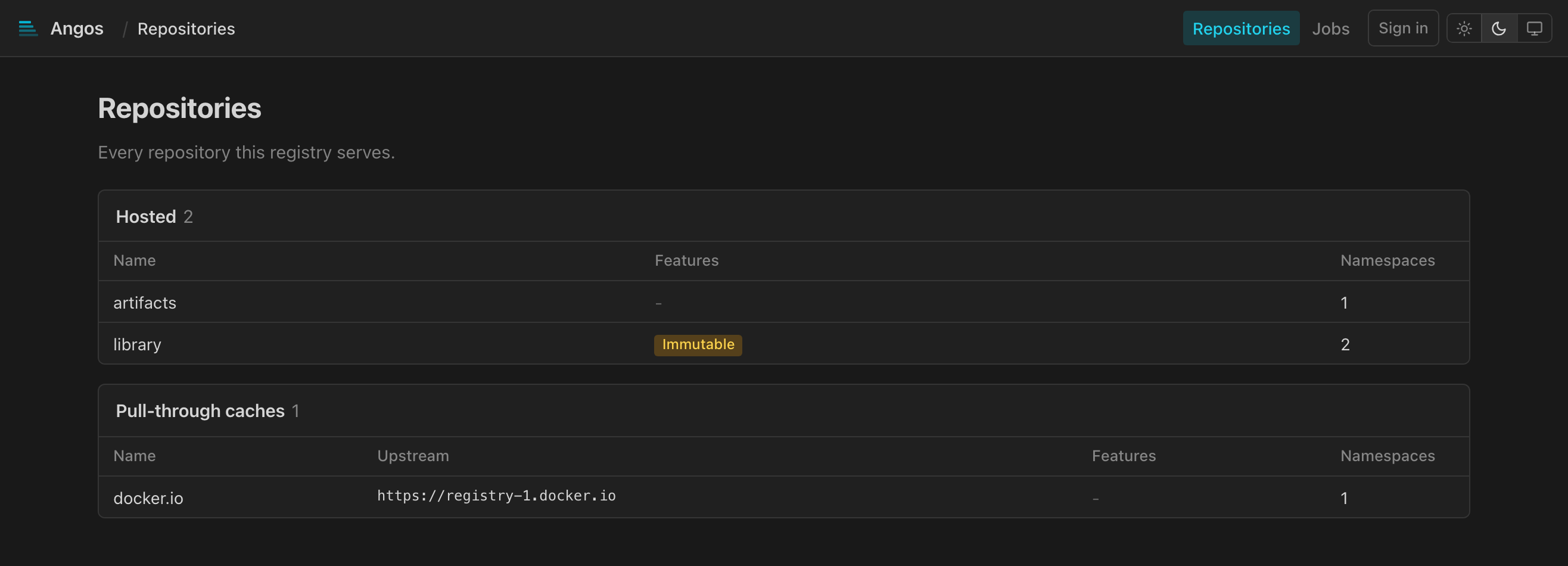

Repository List

Displays the configured repositories in two tables, the hosted ones first and the pull-through caches, when any are configured, after them, each with:

Repository name
Upstream registry, for a cache
Immutable badge, when immutable tags are enabled
Namespace count

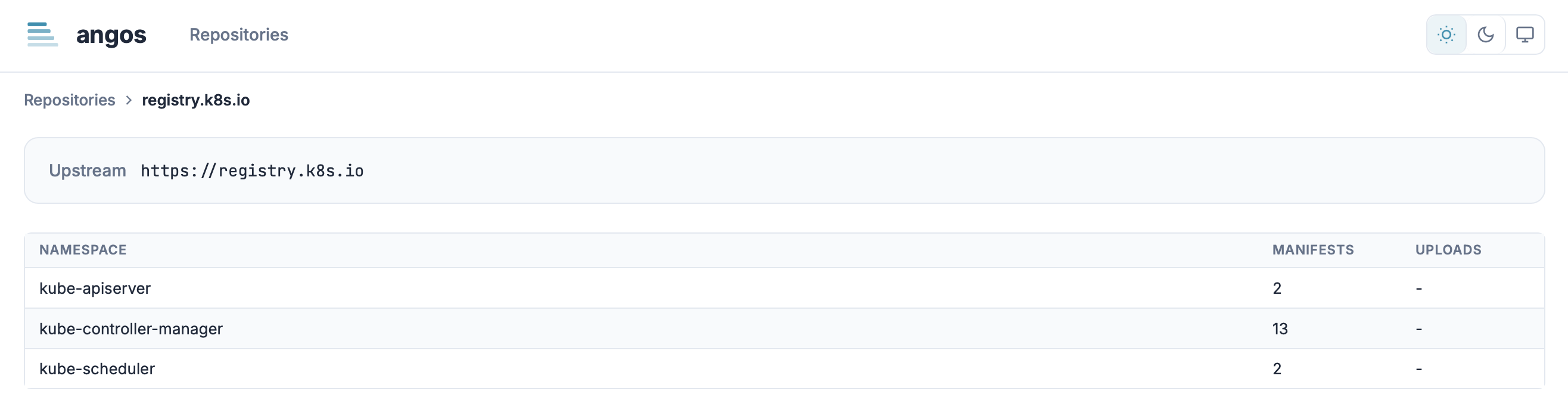

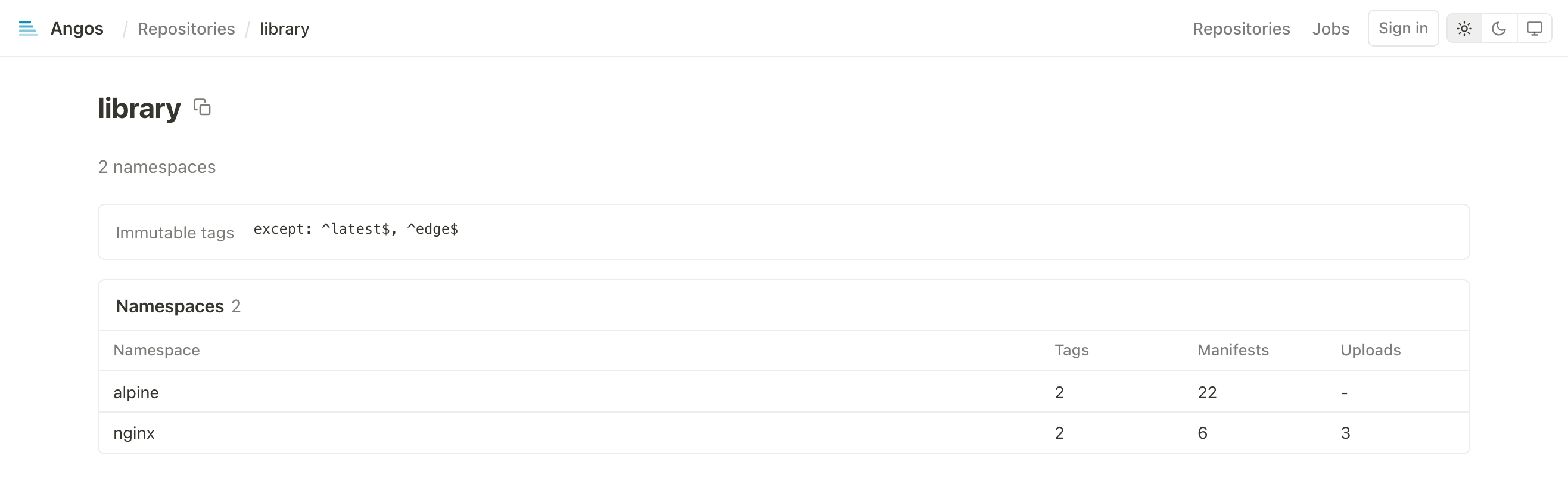

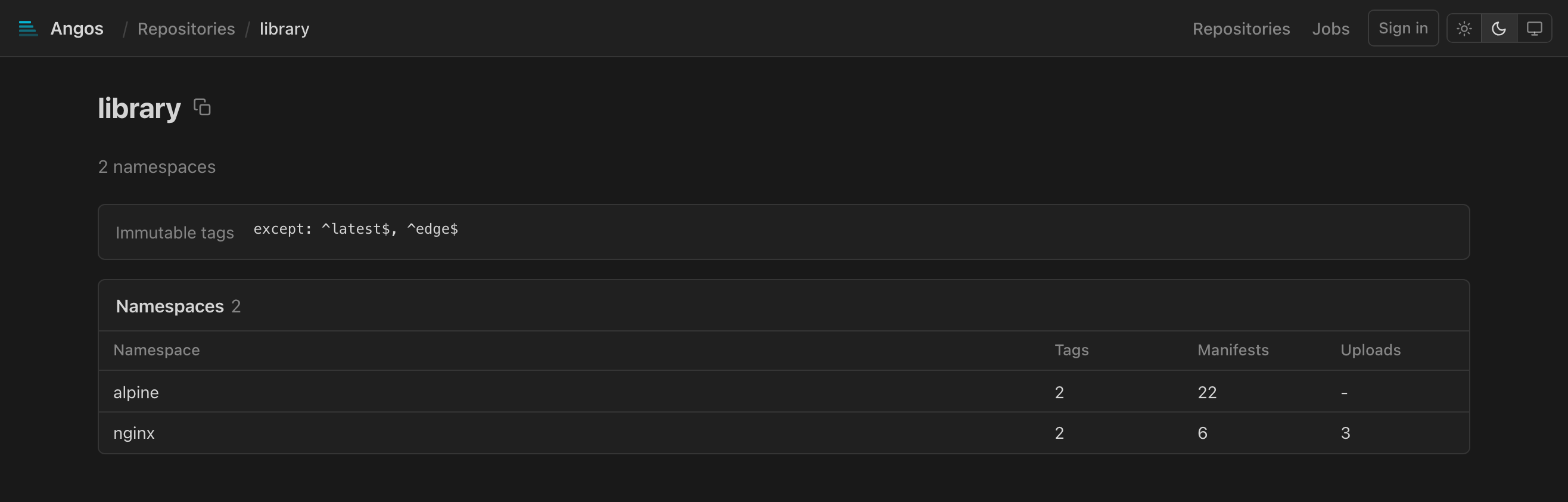

Namespace List

Displays images within a repository:

Image name (namespace)
Manifest count
Upload count (if any in progress)
Repository configuration summary

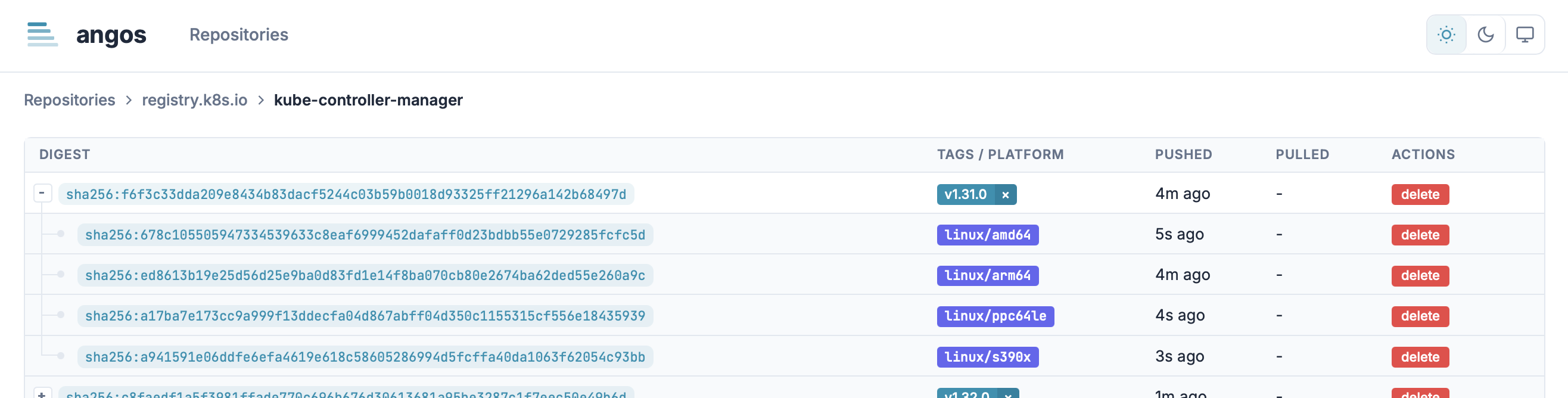

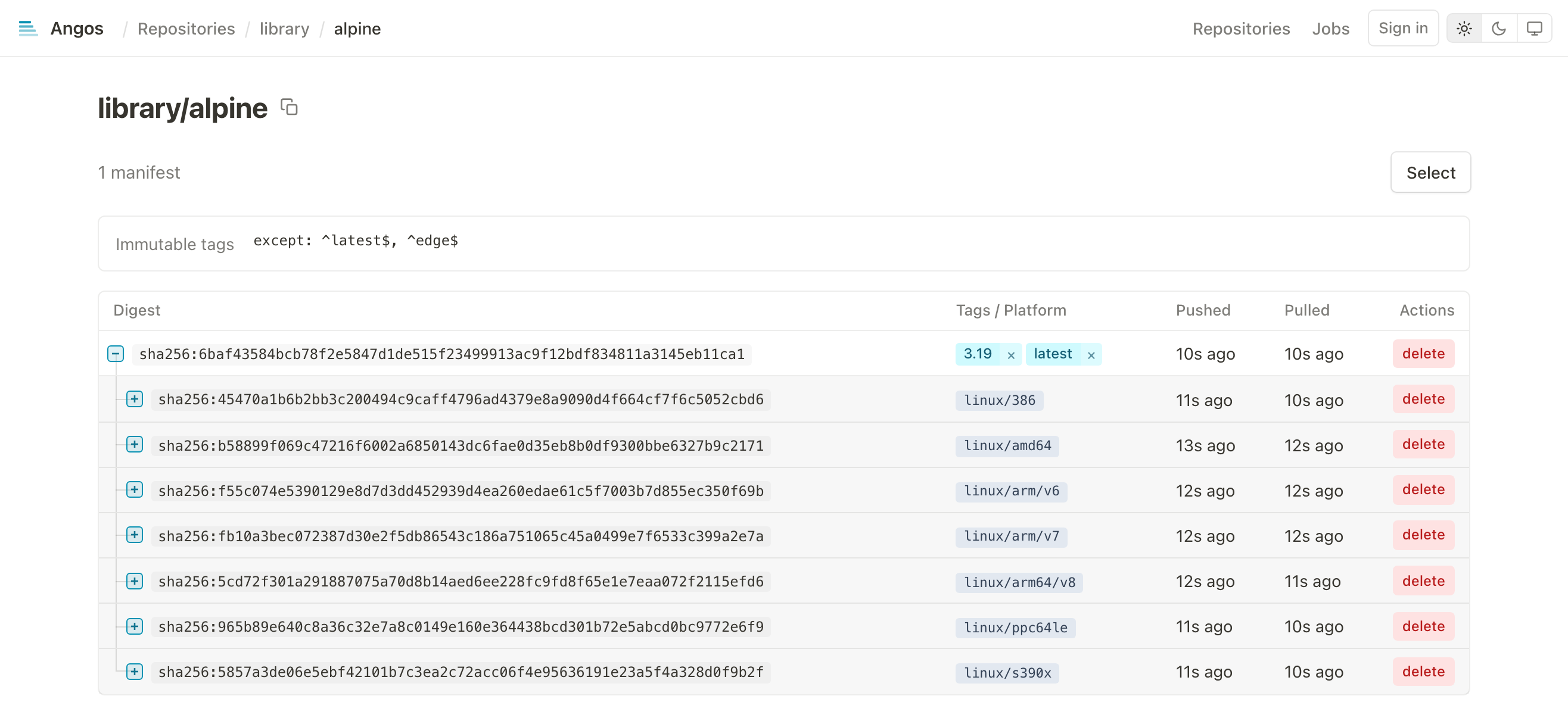

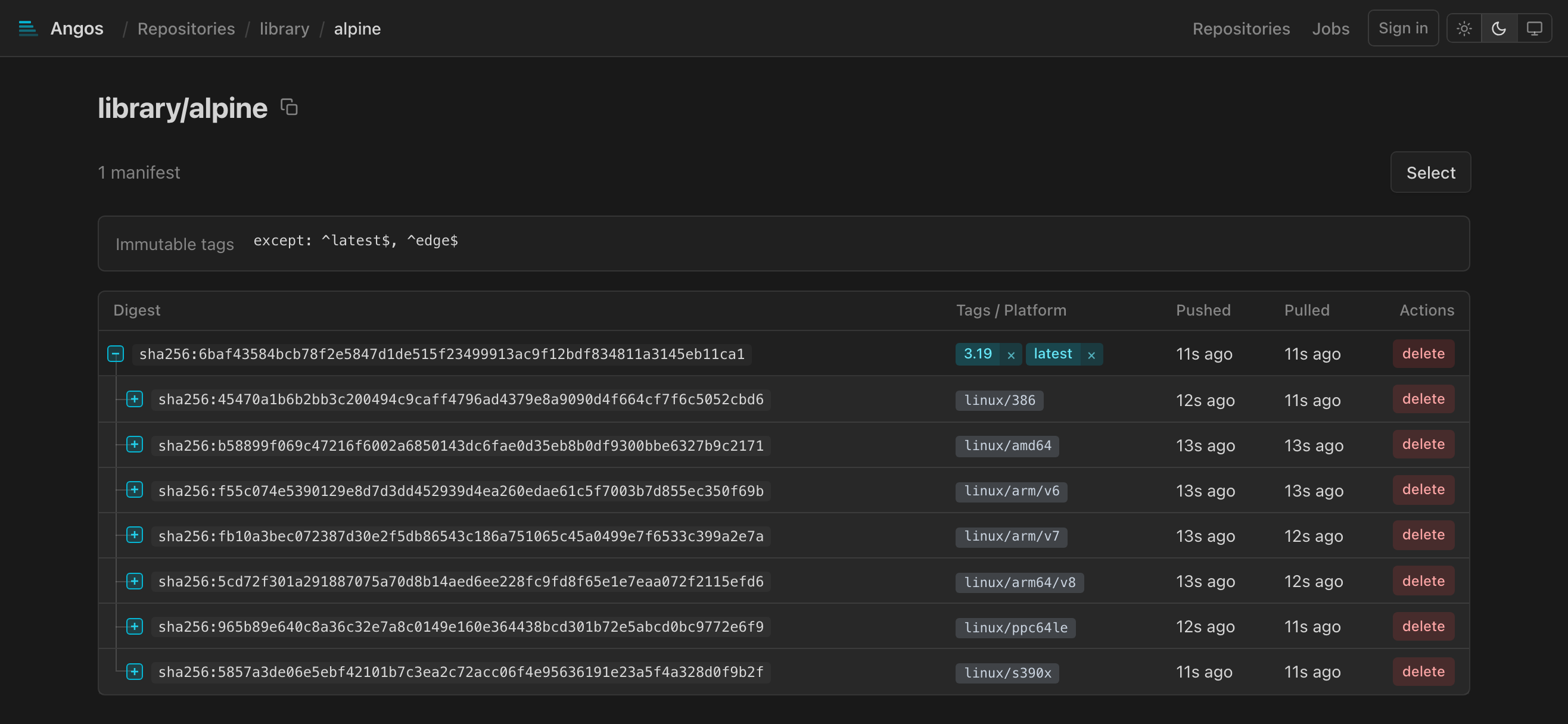

Manifest List

Tree view of all manifests:

Multi-platform indexes with expandable children
Platform badges (e.g., linux/amd64, linux/arm64)
Attestations badges: SBOM, SLSA, signature, vulnerability report, etc.
Tags as clickable badges
Digest (shortened, click to copy full)
Push time
Last pull time (if tracked): the newest pull by digest or through any of its tags

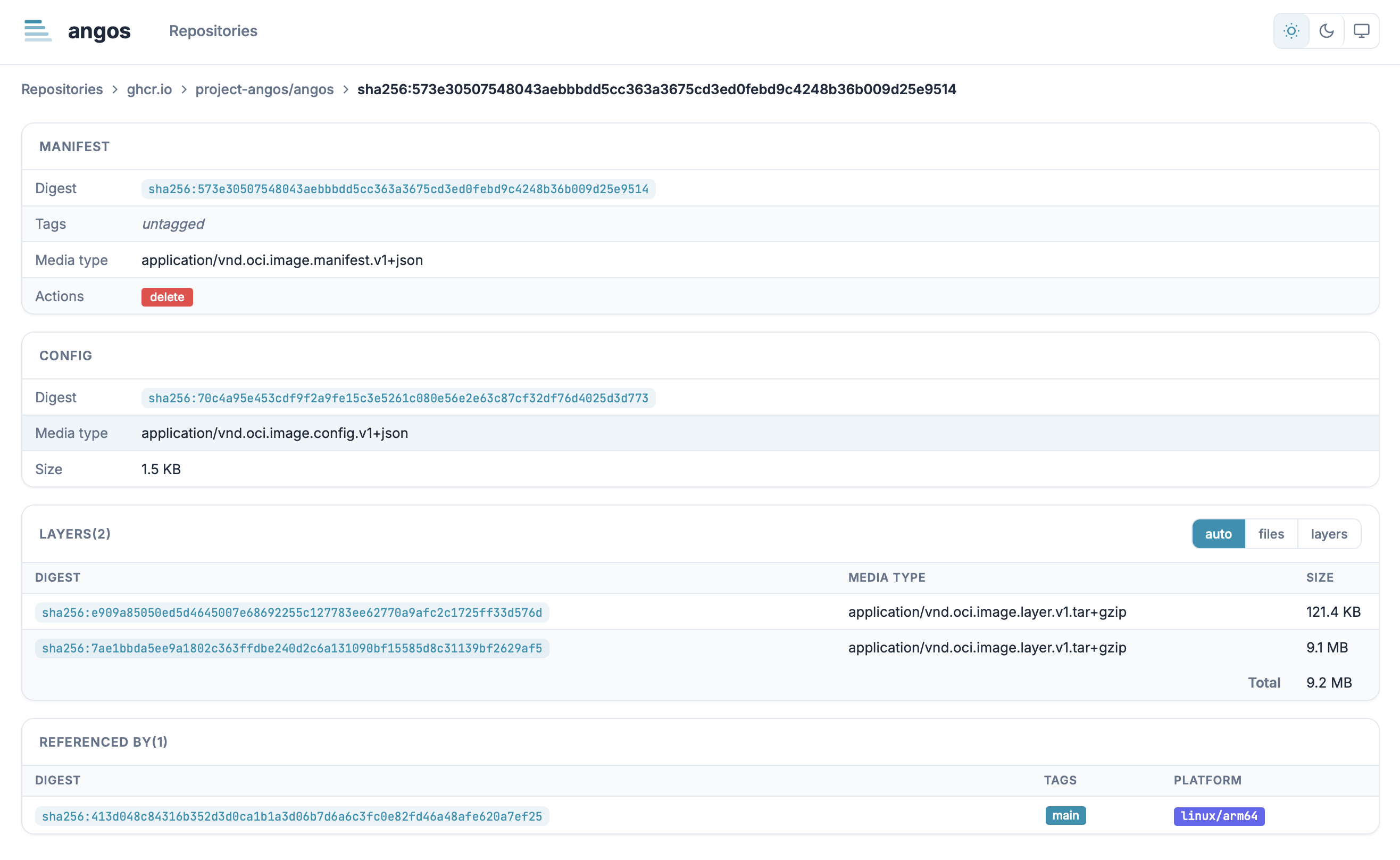

Manifest Details

The page opens with a title, the full name it was addressed by (namespace:tag or namespace@digest) with a copy button, and splits the detail into tabs. Each tab has its own URL, the anchor naming it (#history, #vulnerabilities, #filesystem) and none for OCI, so a tab can be linked to; an anchor naming a tab the manifest lacks opens OCI. On a multi-platform index the platform shown follows, as in #vulnerabilities/linux/arm64.

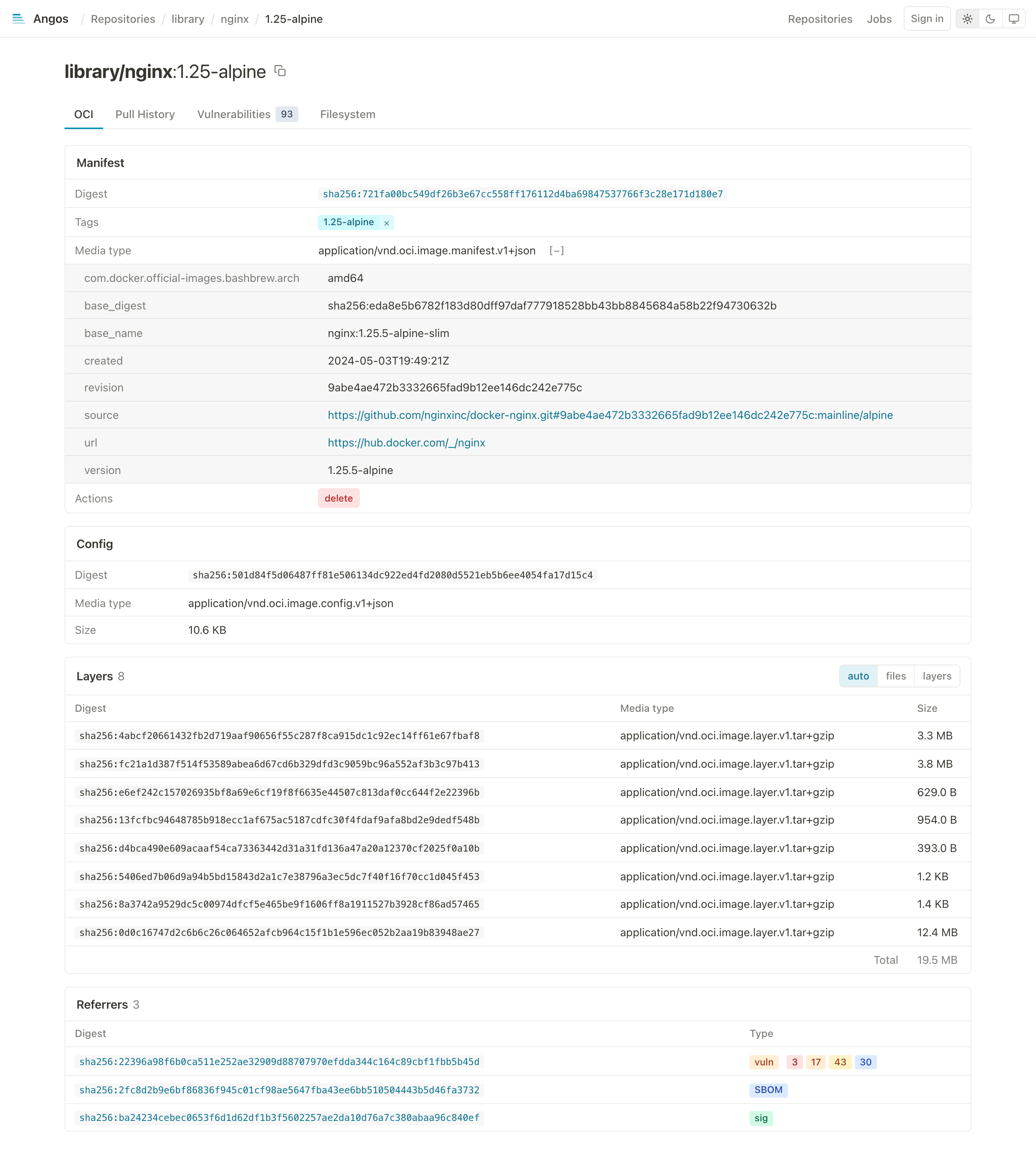

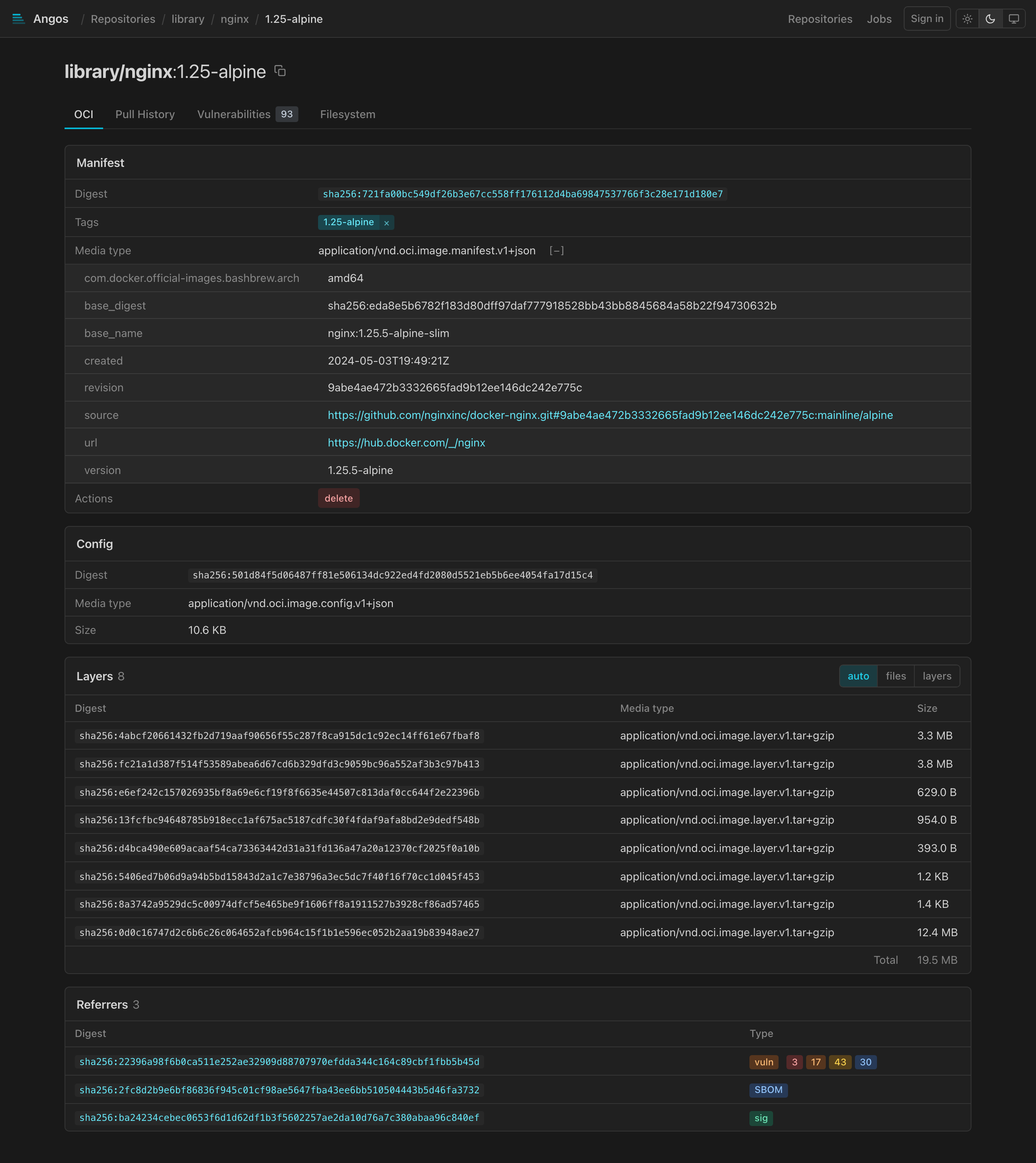

OCI

The manifest (digest, tags with delete buttons, media type, artifact type, subject, expandable annotations, a delete action), the config, the layers (or, for an ORAS artifact, its files with download links), an index's platform manifests, the referrers (signatures, SBOMs, reports), and what references the manifest. Referrers load the first 100 with the view; a "Load more referrers" control fetches the next page, which needs the get-referrers action.

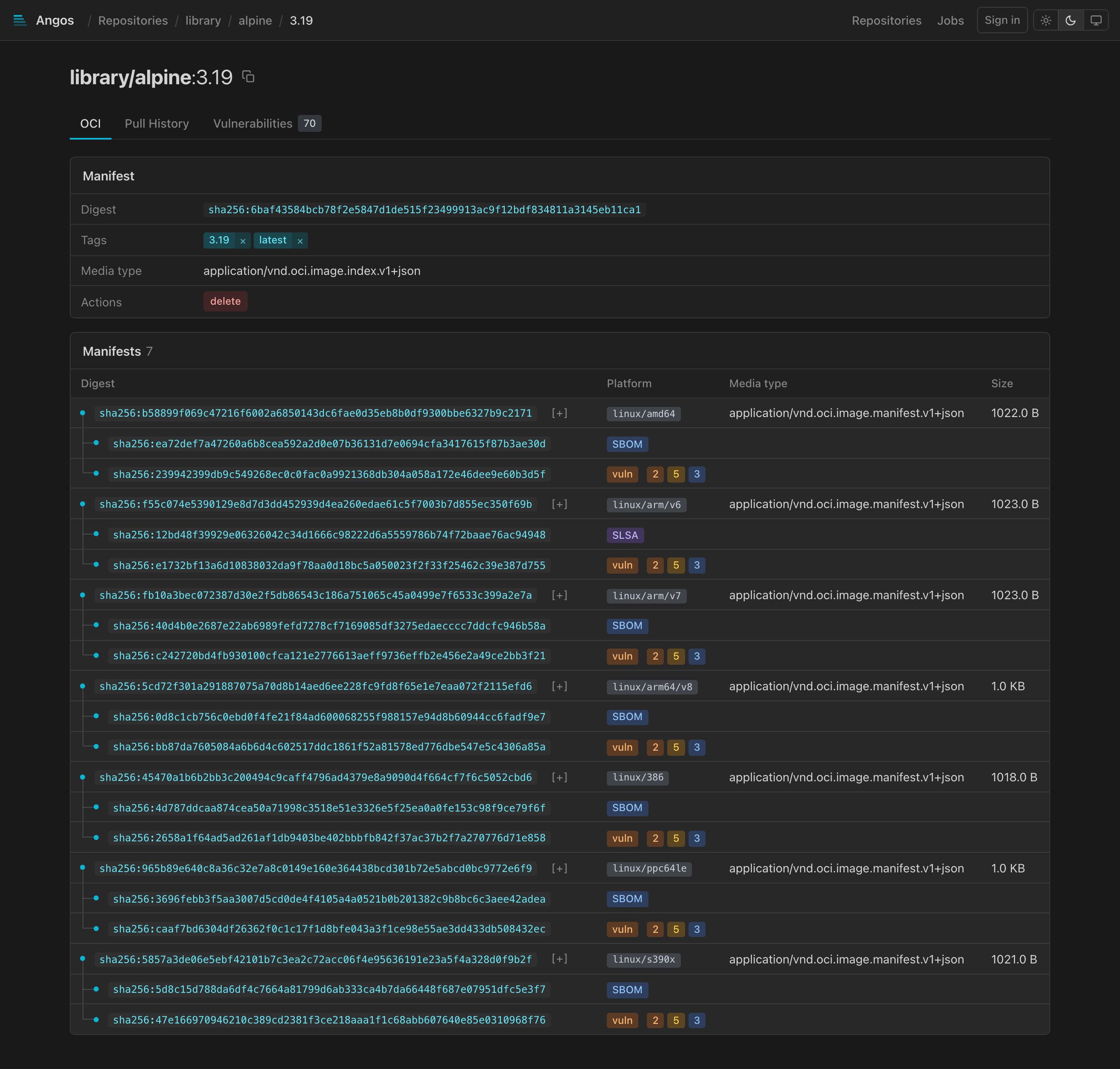

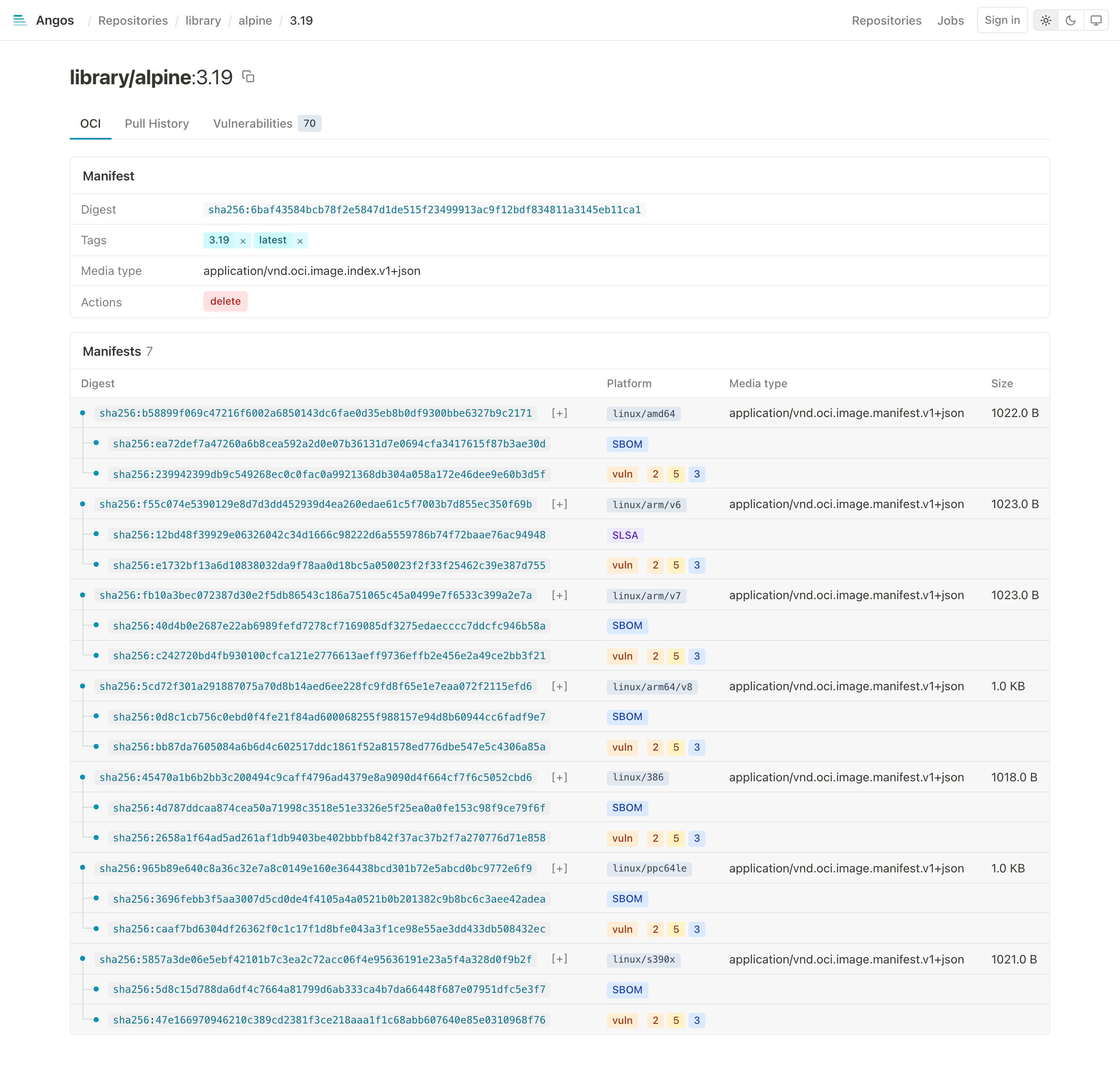

For a multi-platform index, the platform manifests are listed with their referrers nested beneath, each attestation carrying its SBOM, SLSA or vuln badge:

Manifest details for a multi-platform index

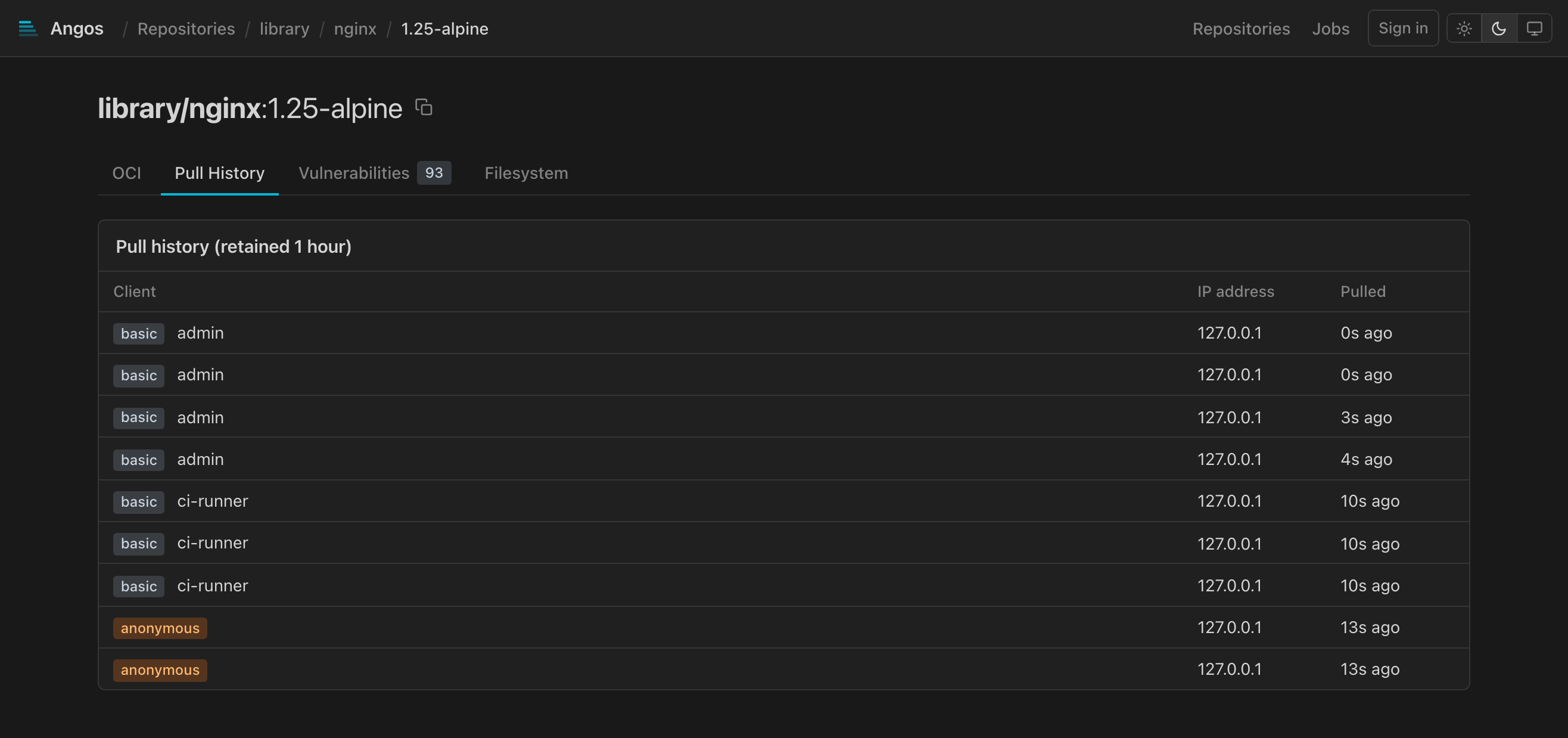

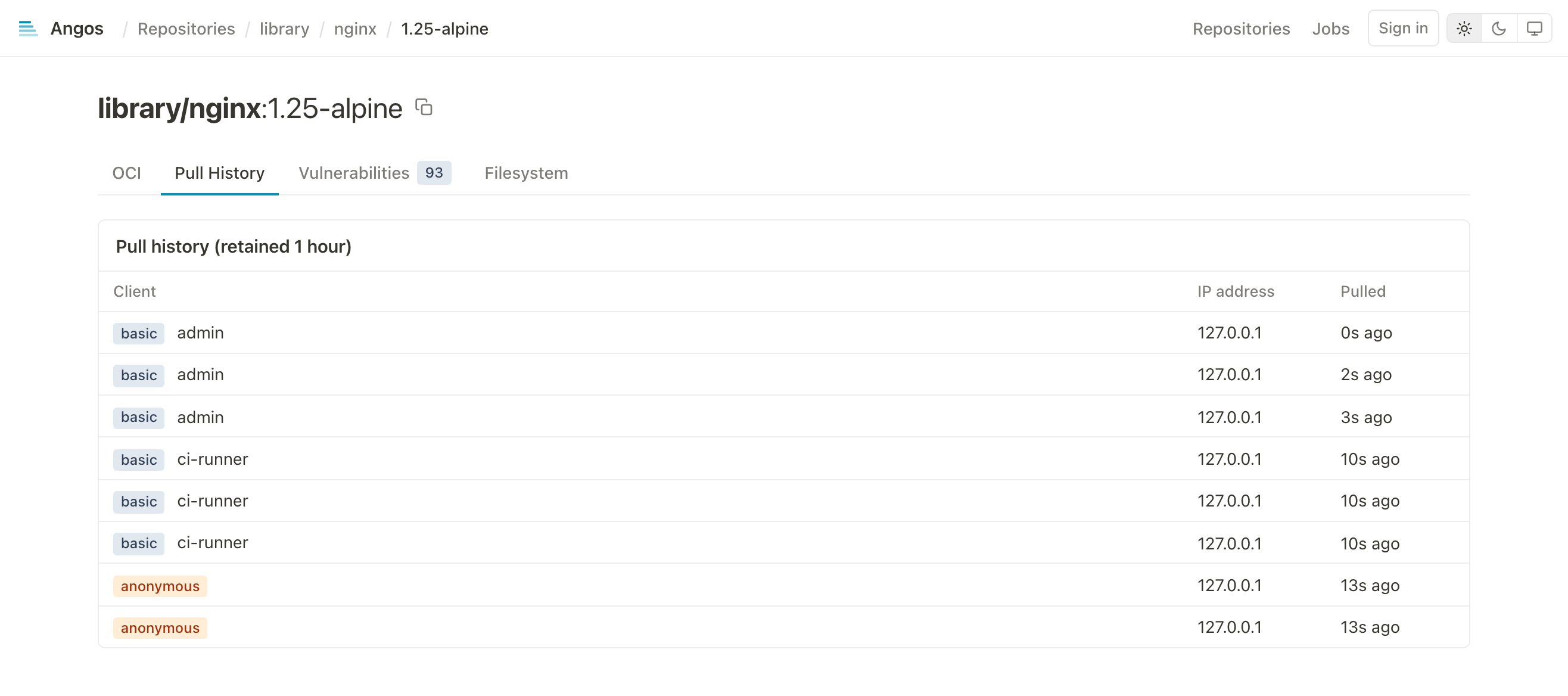

Pull History

The newest 100 recorded pulls of the reference the view was addressed by, a tag and a digest recorded separately, each naming the client that pulled. The heading states the configured retention, since superseded entries are collected past it; recording happens only when update_pull_time is enabled.

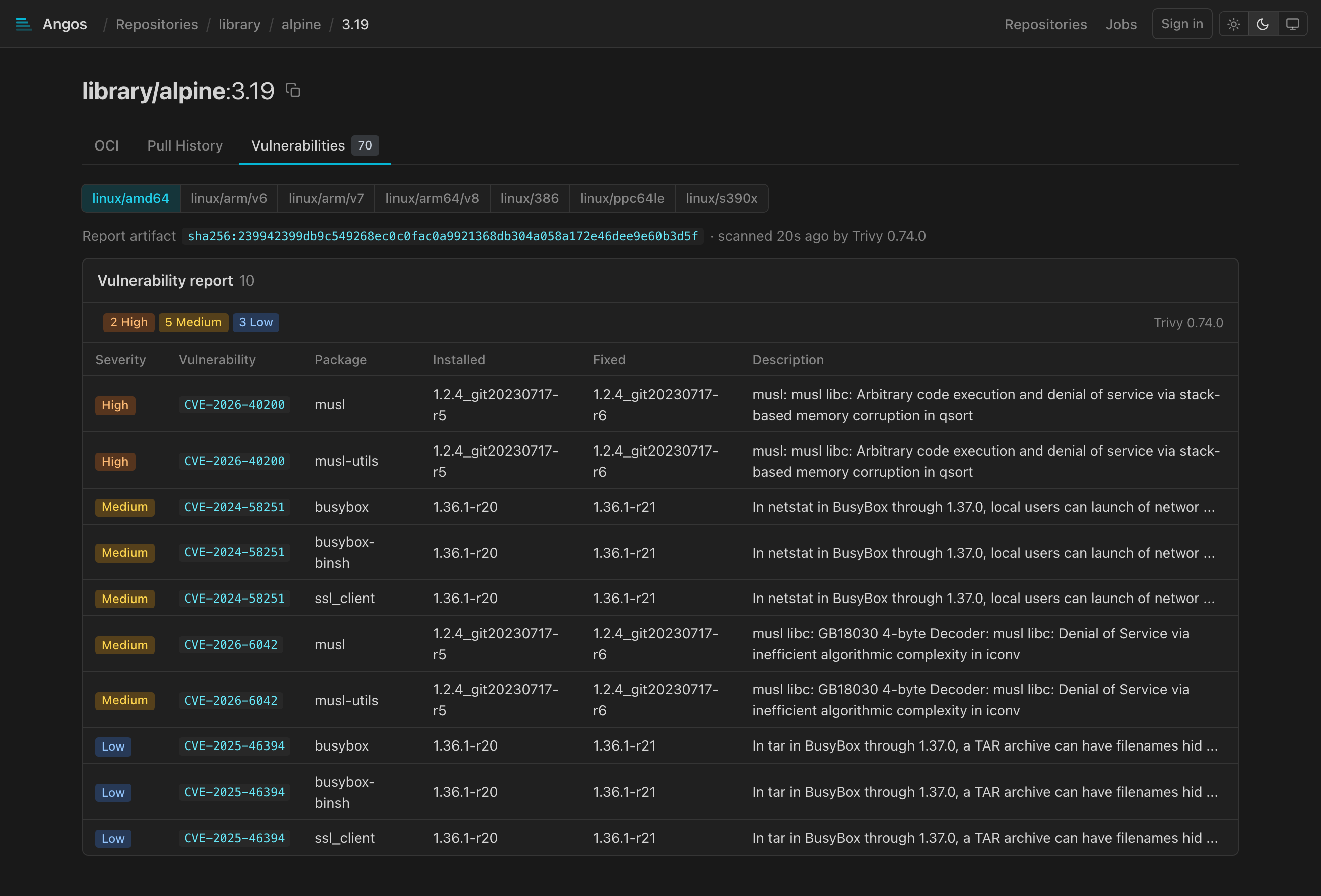

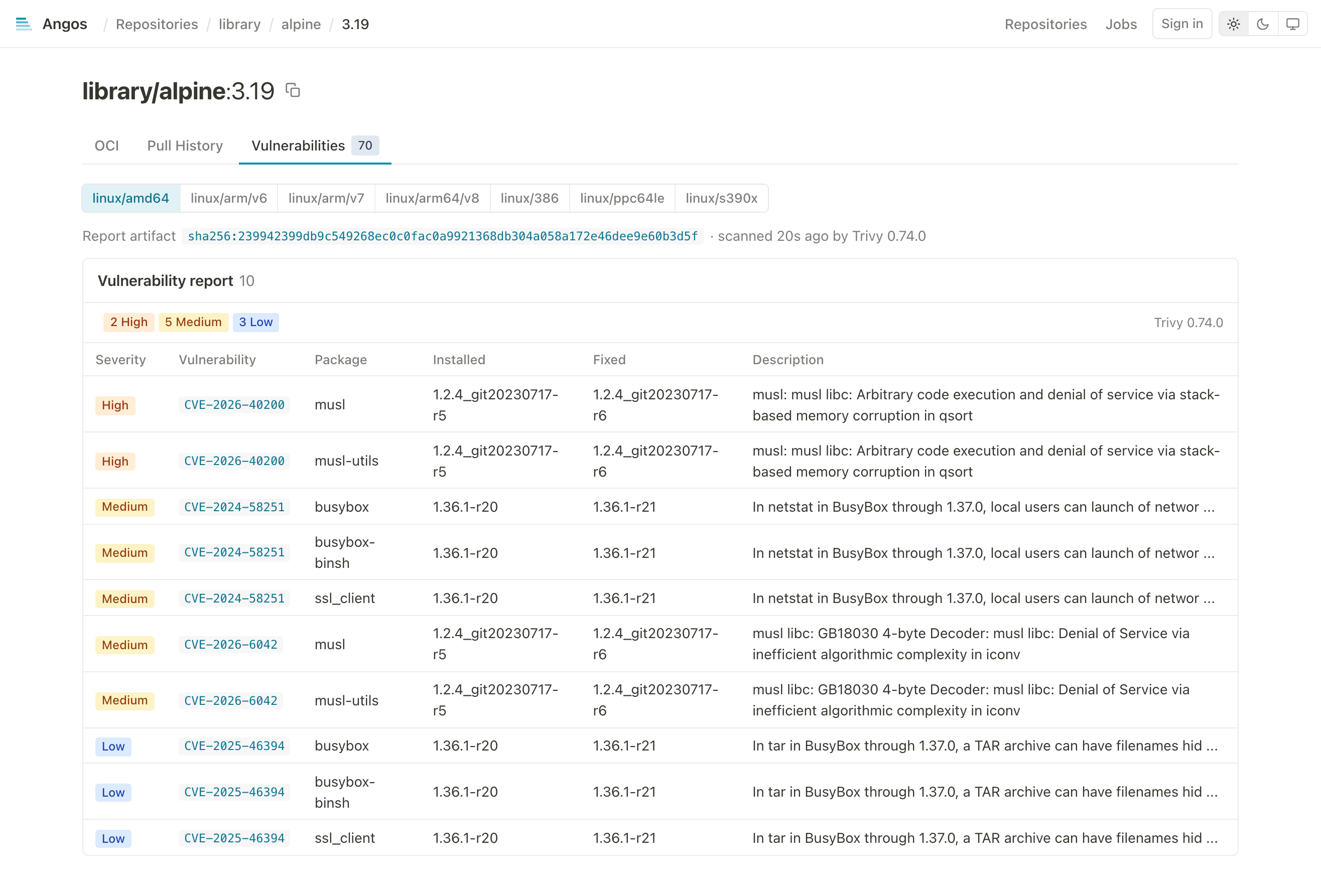

Vulnerabilities

Shown only when a report is attached, with the total finding count in a grey square on the tab: the report inline, its findings filterable by severity, each with the package, installed and fixed versions and a link to the advisory, and the scanner named. A multi-platform index gets a sub-tab per platform manifest that has a report. The counts also appear next to the vuln badge in the manifest tree and in referrer lists, as count pills coloured by severity with the severity named on hover.

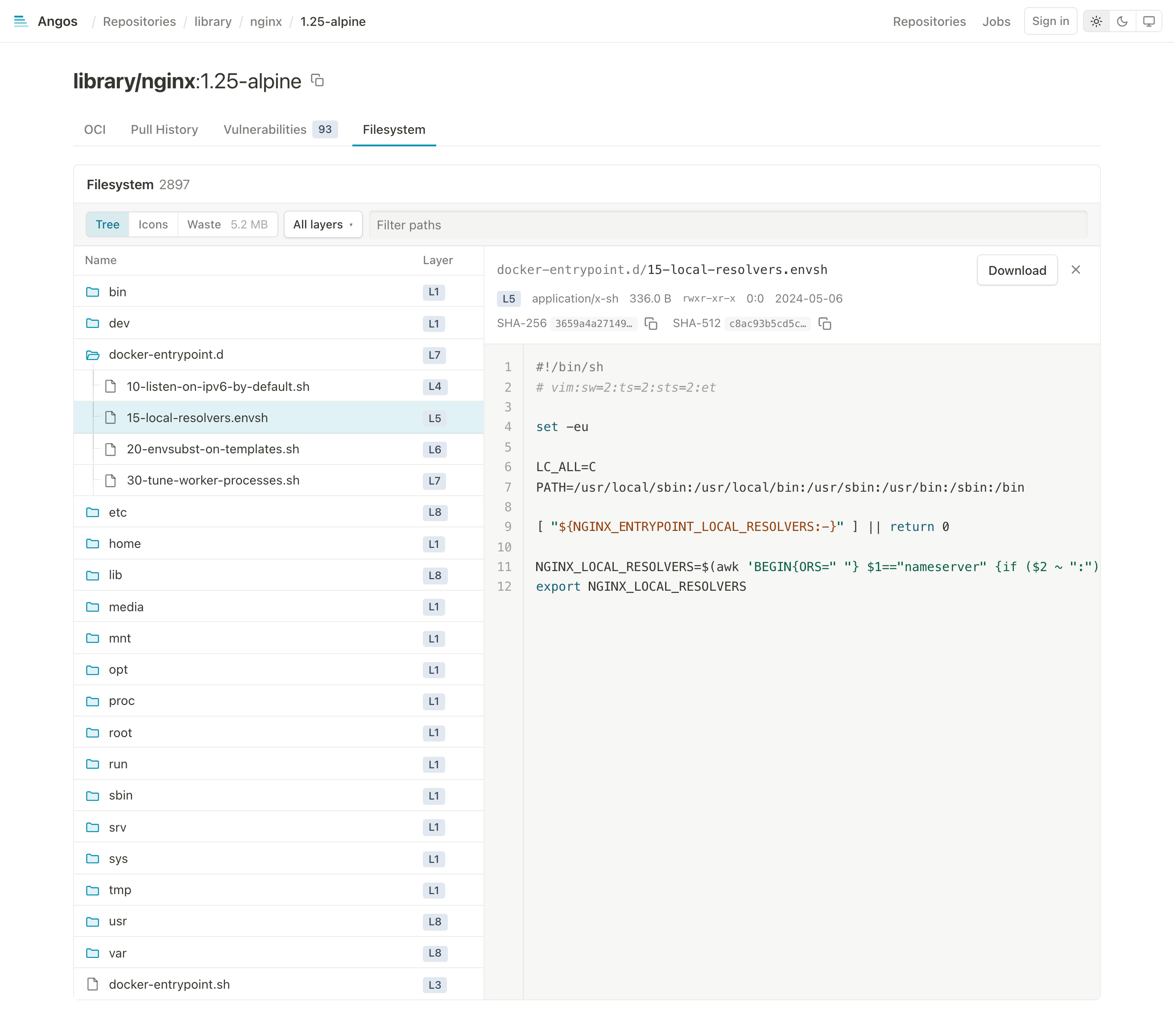

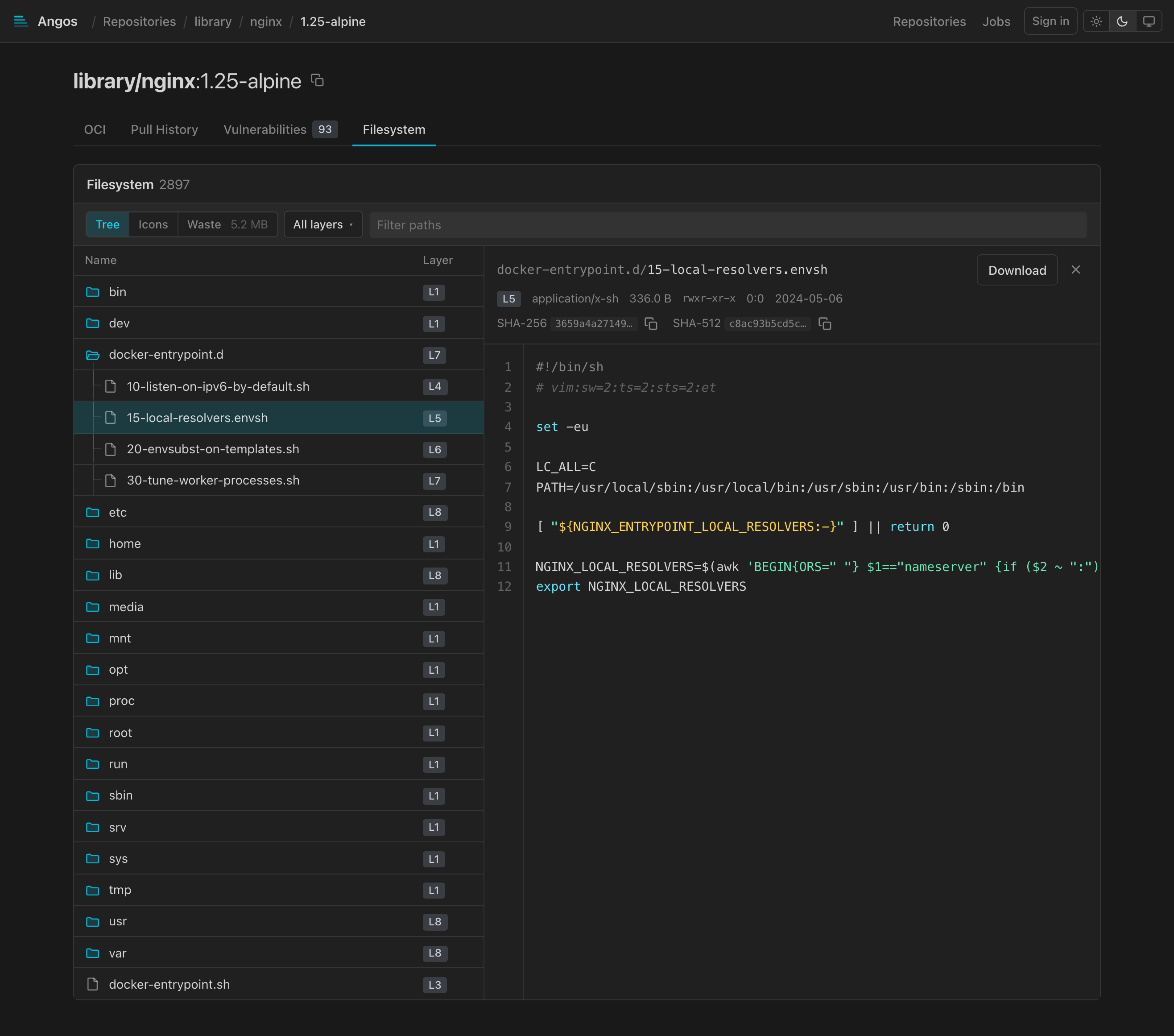

Filesystem

Shown only for an image with tar layers: the layers merged into one tree, the way a runtime applies them, whiteouts removing what lower layers put there, and every entry carrying the layer that last set it. Opening a file shows it beside the list, in view while the list scrolls: its metadata and digests over its text with numbered lines, syntax colored for common languages, markdown rendered, images shown, an ELF binary's type, architecture, loader, hardening and the libraries it needs, a PEM file's certificates listed with their expiry, a diff against another layer's version, the first 512 KiB of a larger one, a chip per layer holding a version of it, and a Download button; a symlink is followed to its target. Both go through the registry's layer endpoints, which need the get-blob action. The open file is in the URL (#filesystem/<path>, @L<n> for another layer's version), Esc closes it, and the arrow keys and Enter walk each view. The first visit to an image nobody indexed shows "Indexing" until the registry's index jobs have walked its layers, and a listing an older version indexed shows with a notice until its layer is indexed again. Beside the Tree and Icons views, a Secrets view lists the files of any layer holding a private key, a service token or a credential anywhere in their text, removed ones included, with the lines they are on, marked when the file opens, a Permissions view lists the setuid, setgid and world-writable files and folders and the files granted Linux capabilities, and a Waste view measures the bytes later layers overwrote or removed and the bytes spent on identical files, each file of either opening on click, the overwritten ones as their layer holds them.

The icon view walks the tree folder by folder as tiles:

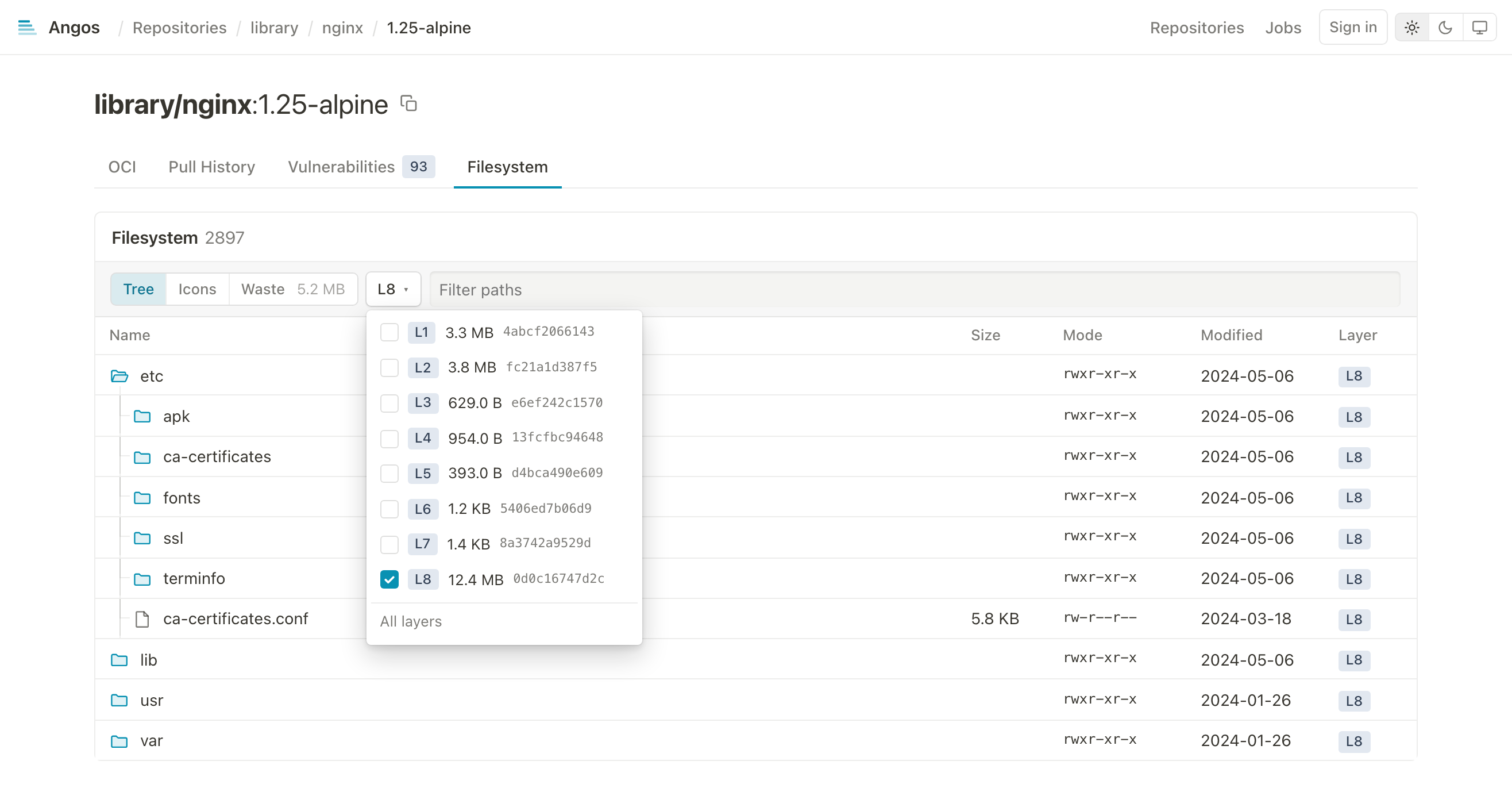

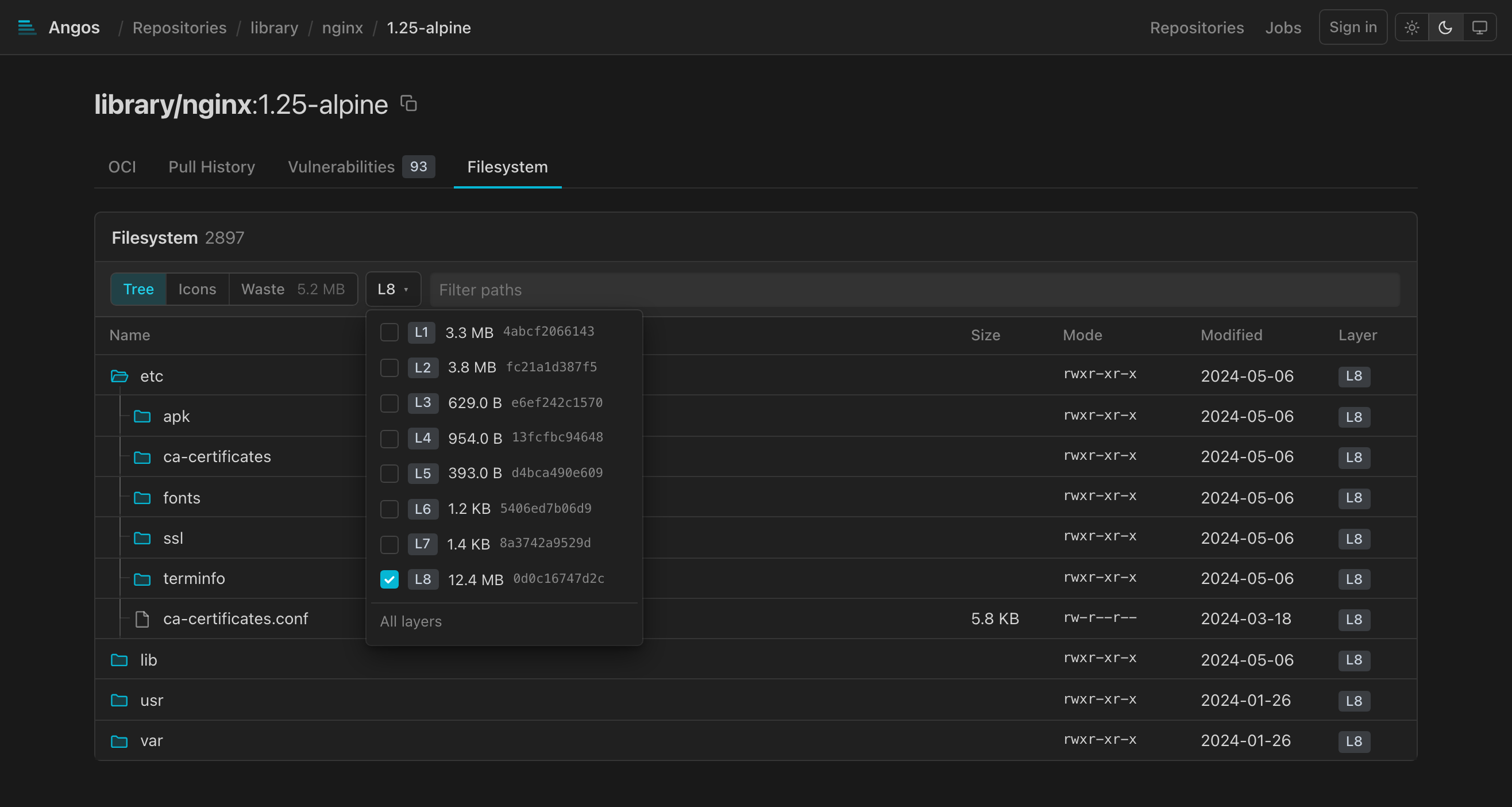

The layers menu narrows the tree to what the checked layers added, changed or removed, and a path filter narrows it to matching names:

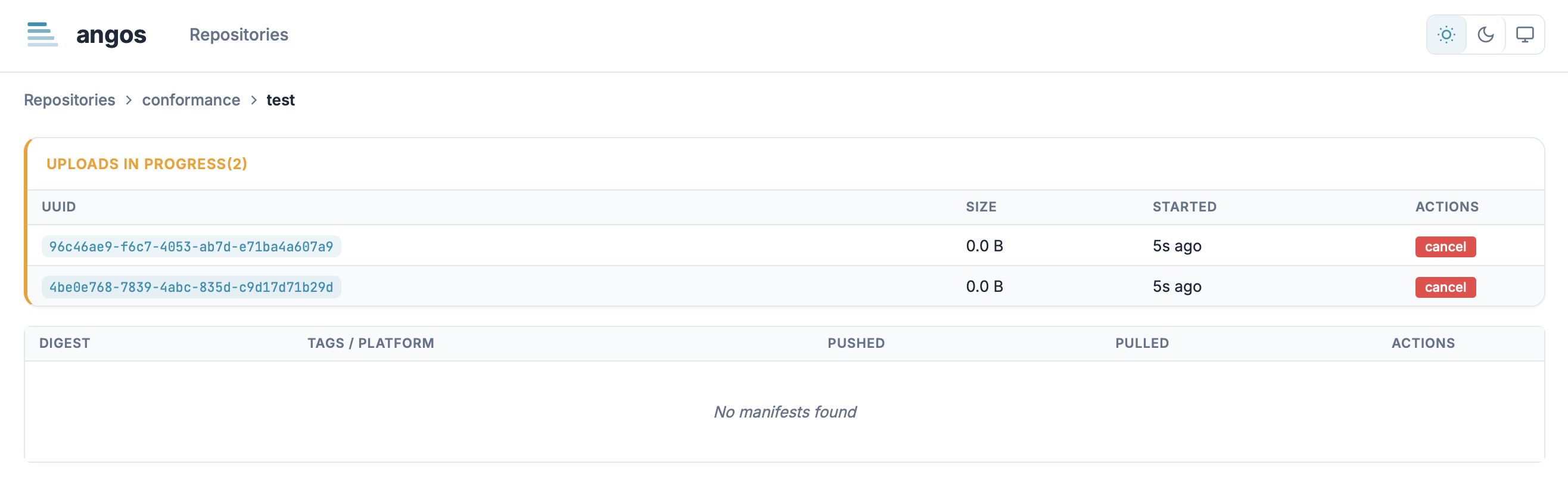

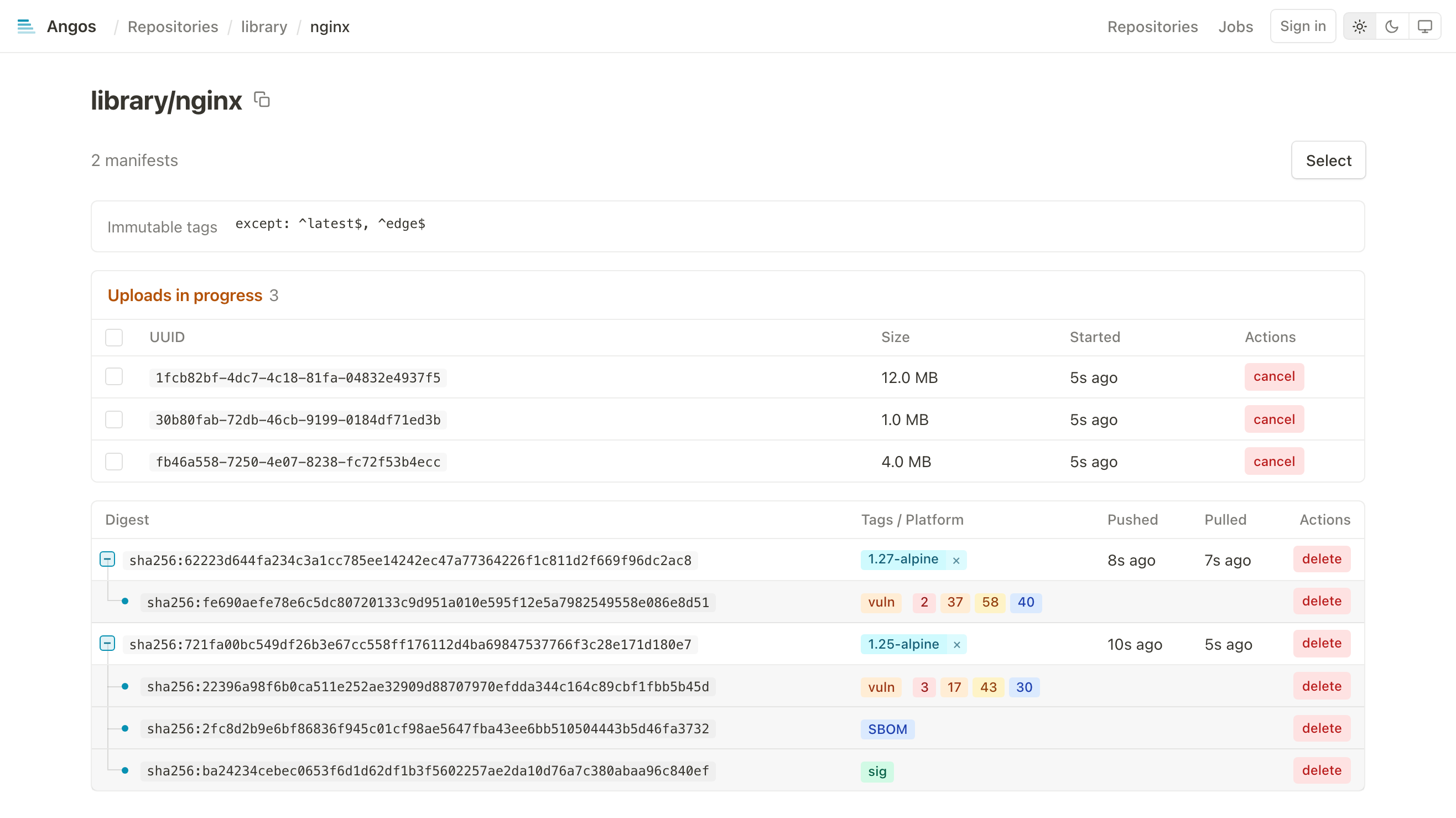

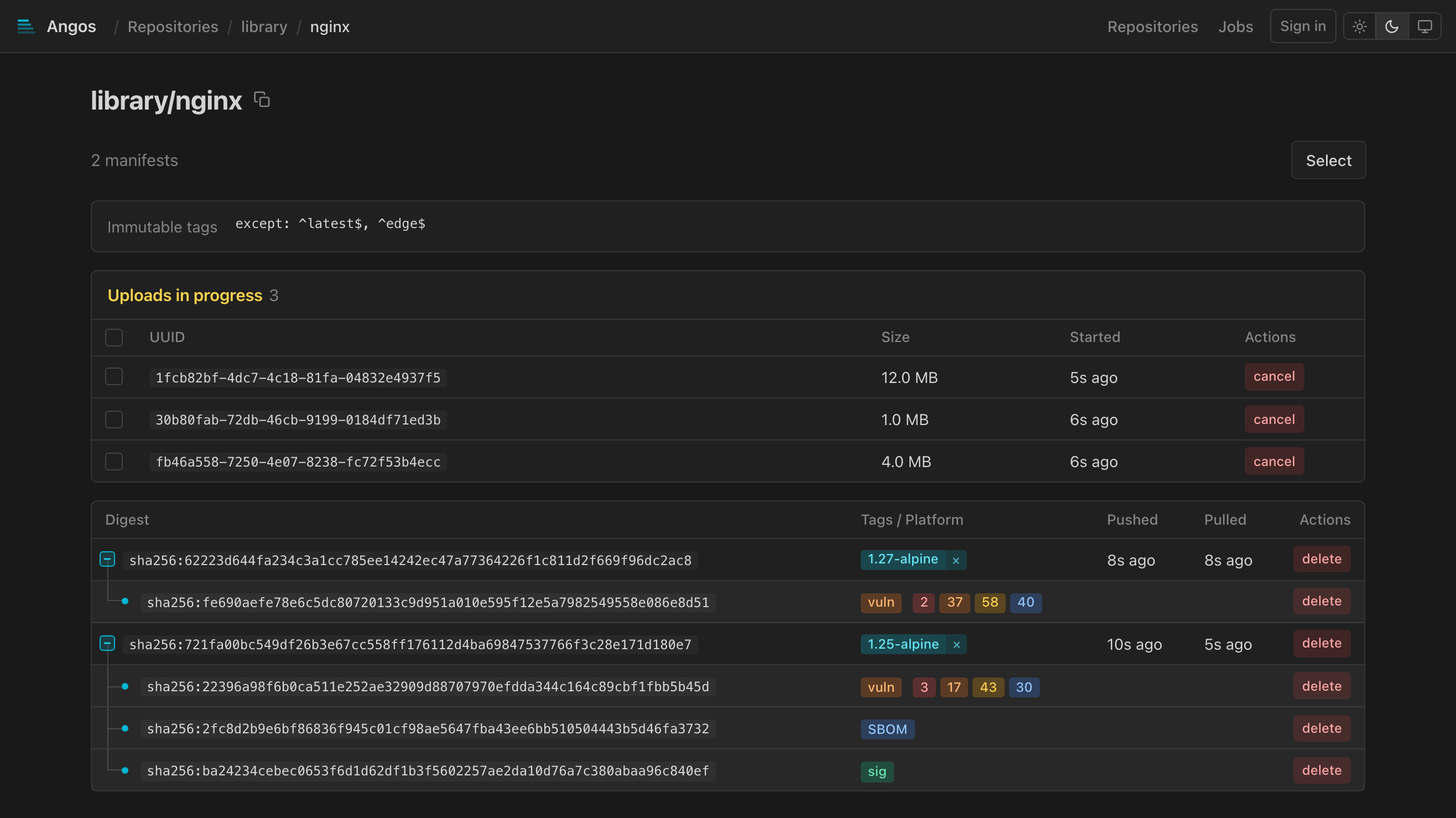

Uploads

Shows in-progress blob uploads:

Upload UUID
Current size
Start time
Cancel button

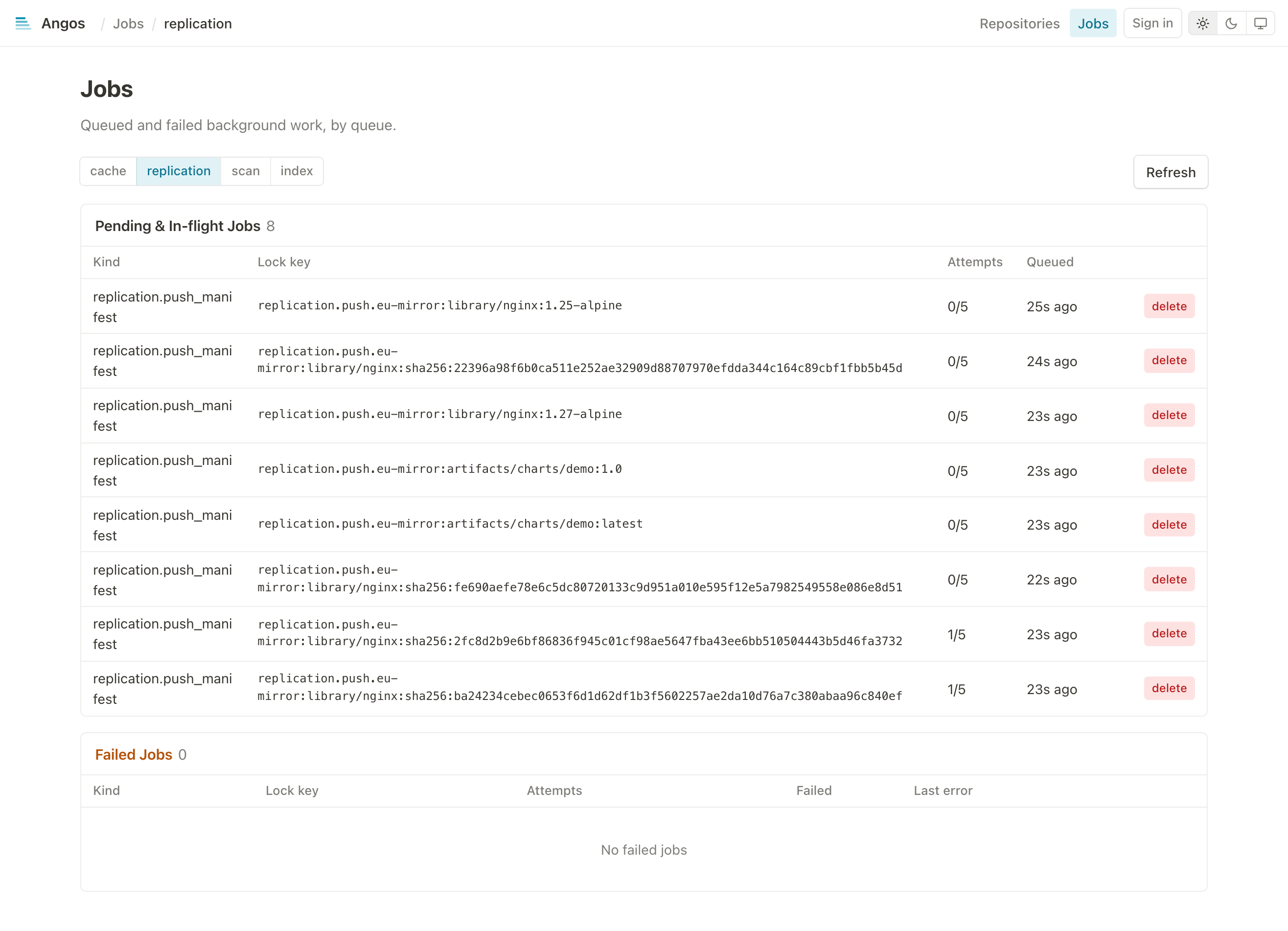

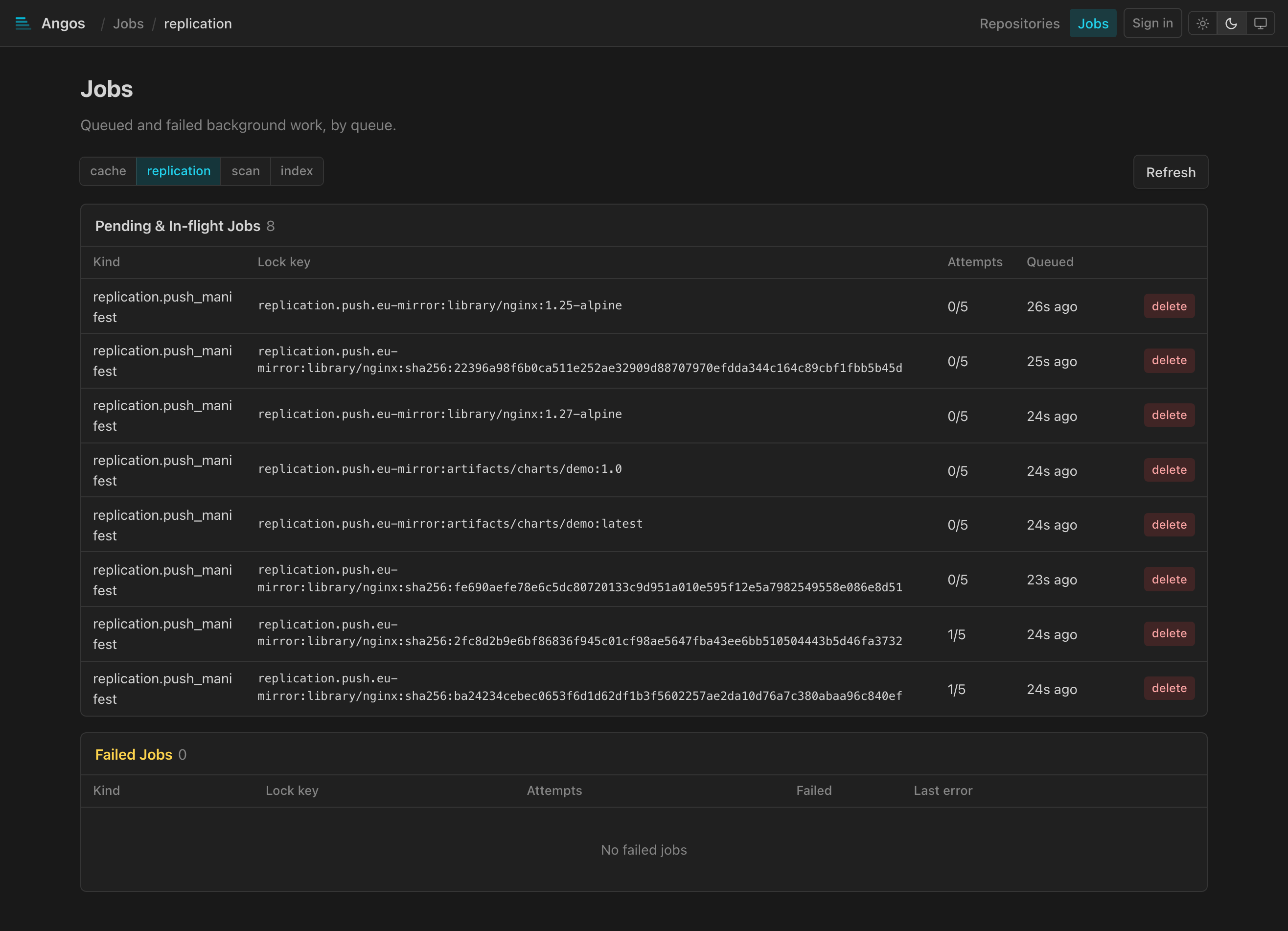

Jobs

Lists the durable background work of each queue, one URL per queue (/jobs/cache, /jobs/replication, /jobs/scan, /jobs/index), selected by the tabs at the top; /jobs opens the cache queue. Two tables:

Pending & In-flight: the kind, lock key, attempt count and queued time of each job, with a backoff badge on one waiting out a retry delay, and a delete action.
Failed: the jobs that exhausted their attempts and dead-lettered, with the last error, a retry that re-queues one and a delete that discards it.

Interactive Features

Delete Operations

Delete buttons require double-click confirmation:

First click: Arms the button (changes to red)
Second click: Executes the deletion
Click elsewhere: Disarms

Deletable items:

Tags (removes tag, keeps the manifest unless a retention policy allows its deletion)
Manifests (by digest), with what their going would orphan
Uploads (cancels in-progress uploads)

Deleting a manifest takes its orphans with it. Deleting an index also deletes the platform manifests no other index names and that carry no tag of their own, and the referrers (signatures, SBOMs, scan reports) of everything removed, since a referrer without its subject has nothing left to describe. A platform manifest another index still names, and anything tagged, stays. The armed confirm button names what goes, as confirm (+2 platform, +1 attestation). The registry's own DELETE is per manifest and unchanged: this is the web UI deleting what a retention policy would otherwise reclaim later, which matters most when no retention policy is configured, since untagged manifests are then kept indefinitely.

Deleting several manifests: the Select button above the manifest table puts a checkbox on every row, with one in the header that covers the rows at the top level. delete selected (N) then arms and confirms like any other delete and sends one delete per manifest; the rows that went disappear at once and the refresh reconciles the rest. Done leaves select mode, and so does opening another page; the whole checkbox cell is the target, not only the box.

Copy to Clipboard

The manifest page's title carries a copy button; it copies the full name, namespace:tag or namespace@sha256:..., so what is copied can be pulled as is.

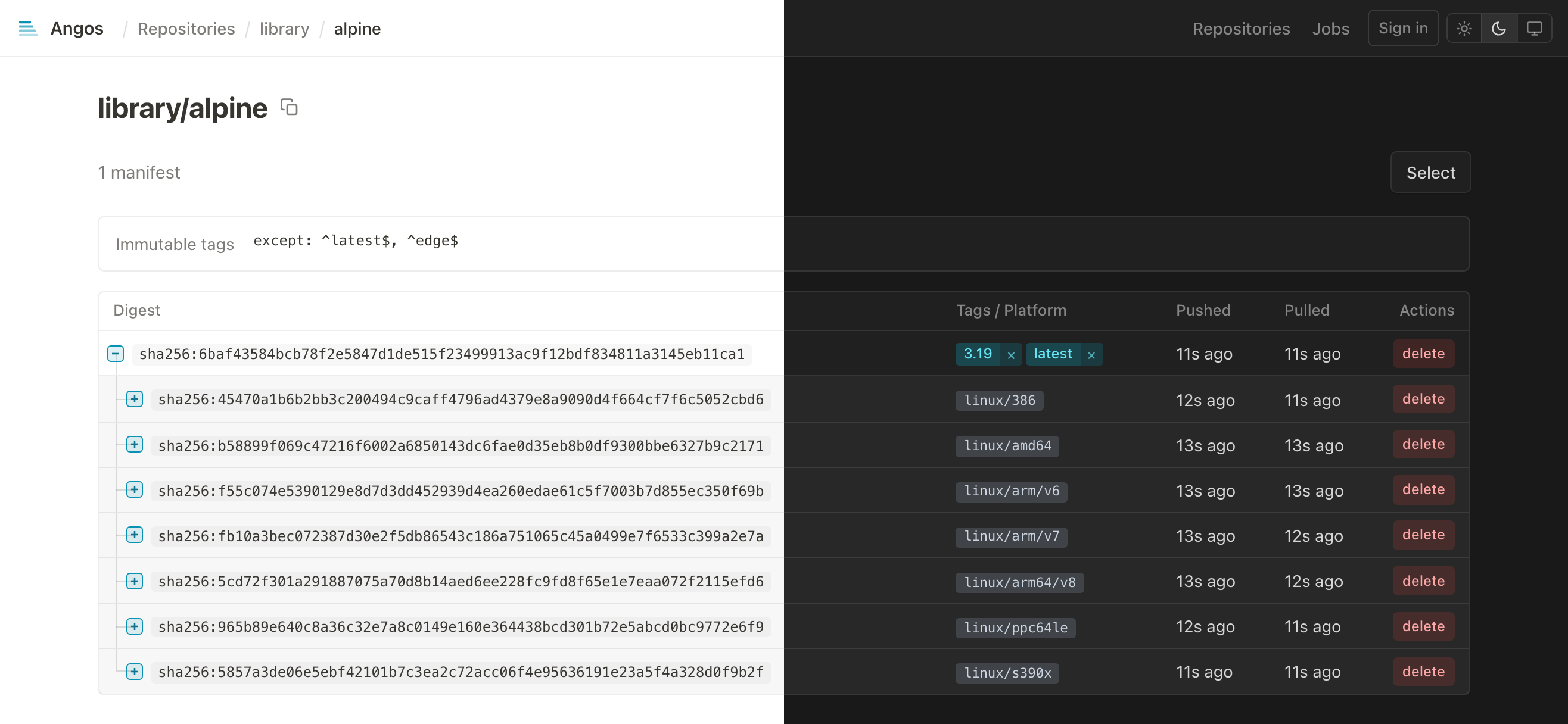

Theme Toggle

Toggle between light, dark and system themes with the switcher at the right of the top bar. Preference is saved in browser local storage.

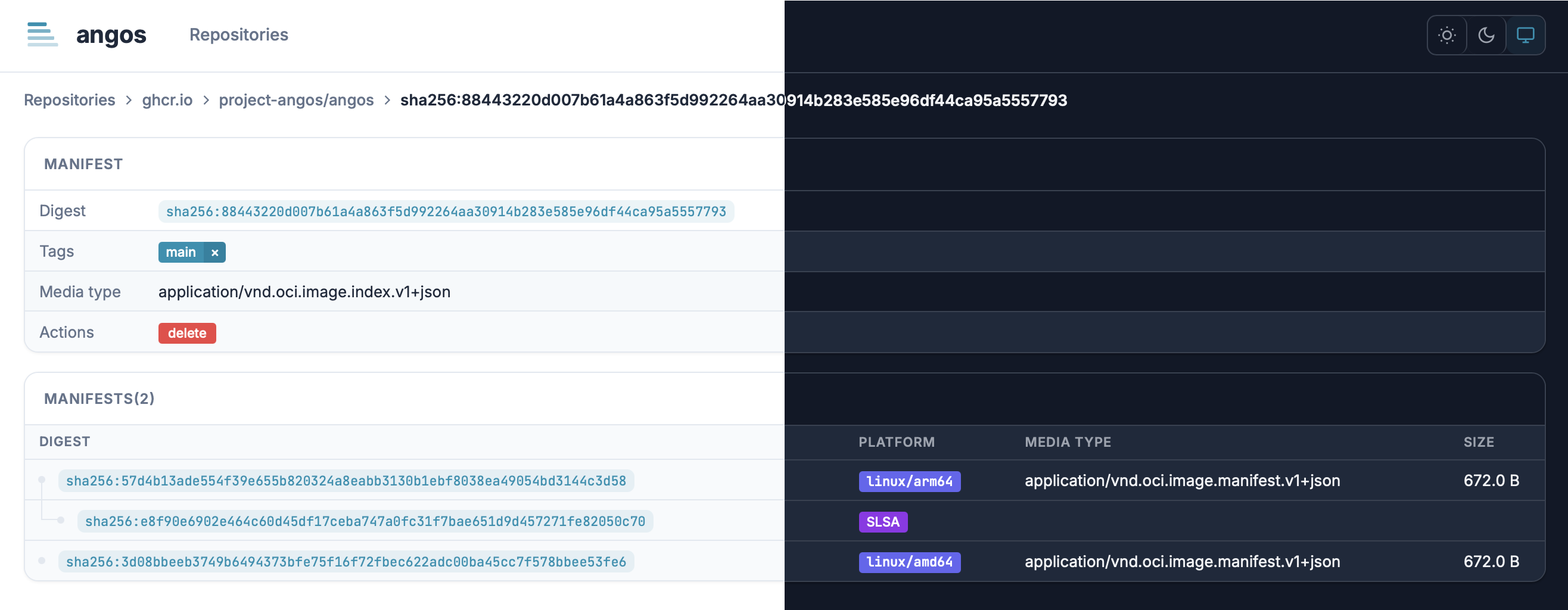

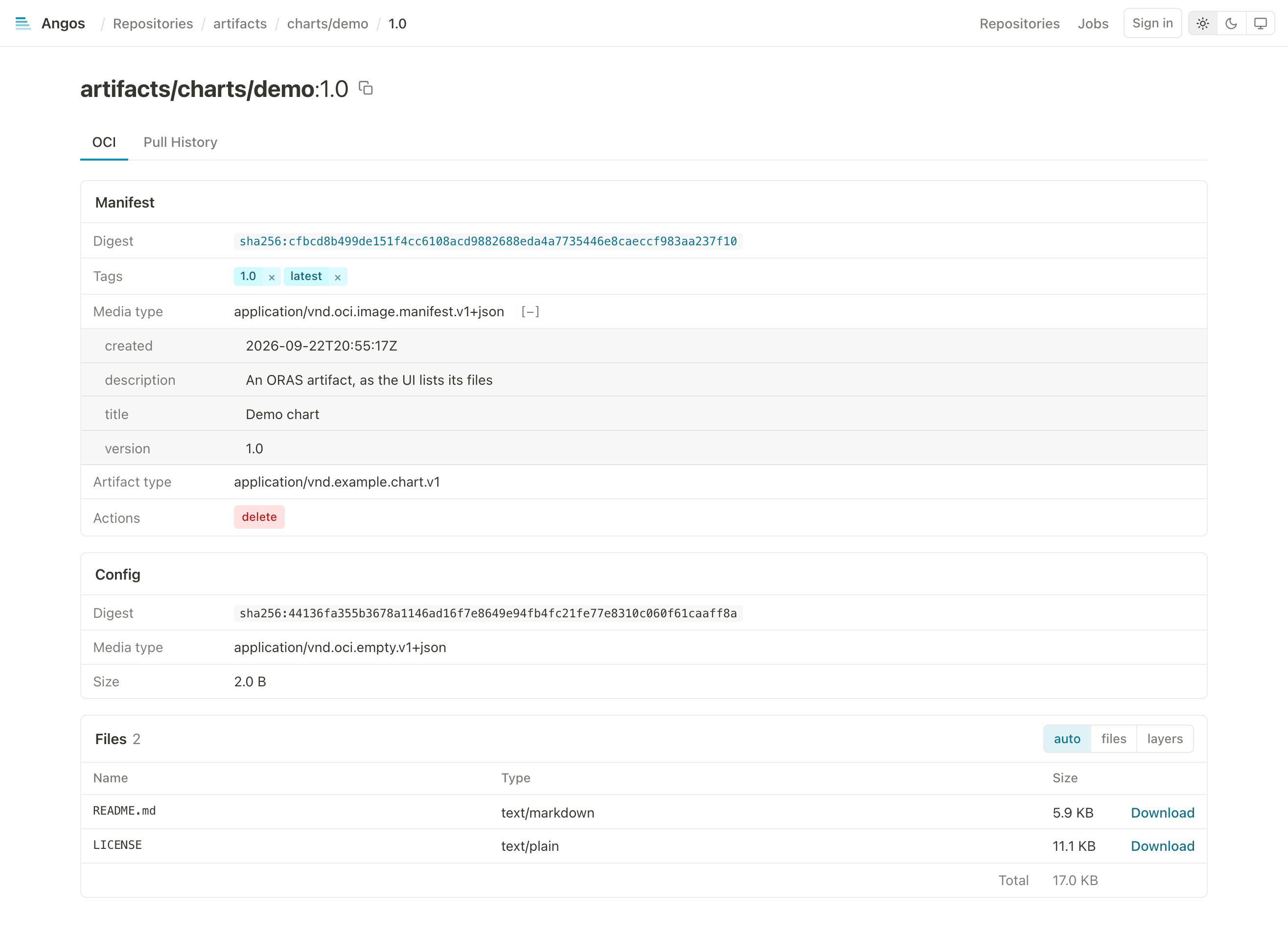

Dark and Light Theme

Annotations Expansion

Click [+] to expand annotation values. Well-known annotation keys are displayed with friendly names:

org.opencontainers.image.title → Title
org.opencontainers.image.description → Description
org.opencontainers.image.version → Version
org.opencontainers.image.created → Created
org.opencontainers.image.source → Source

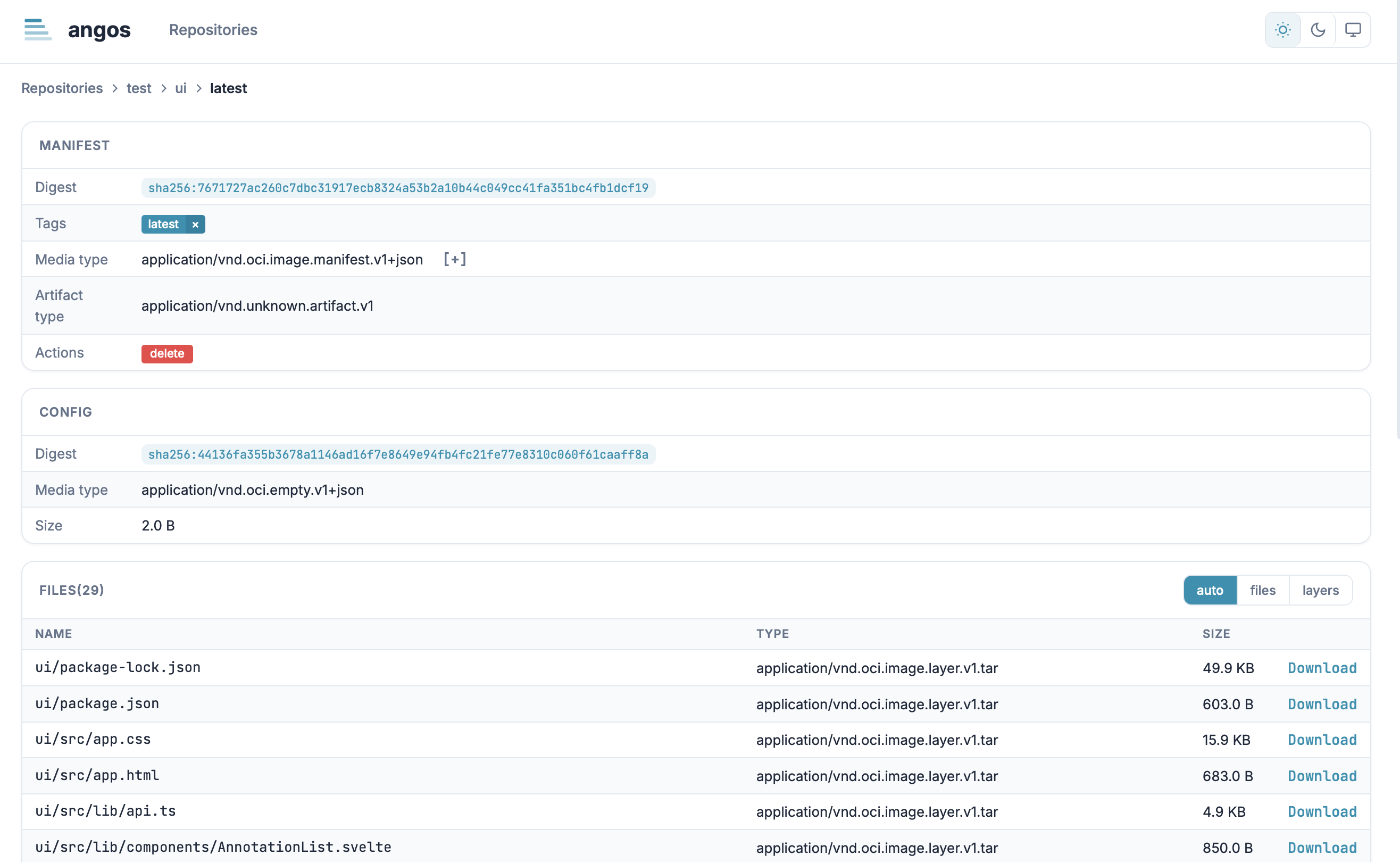

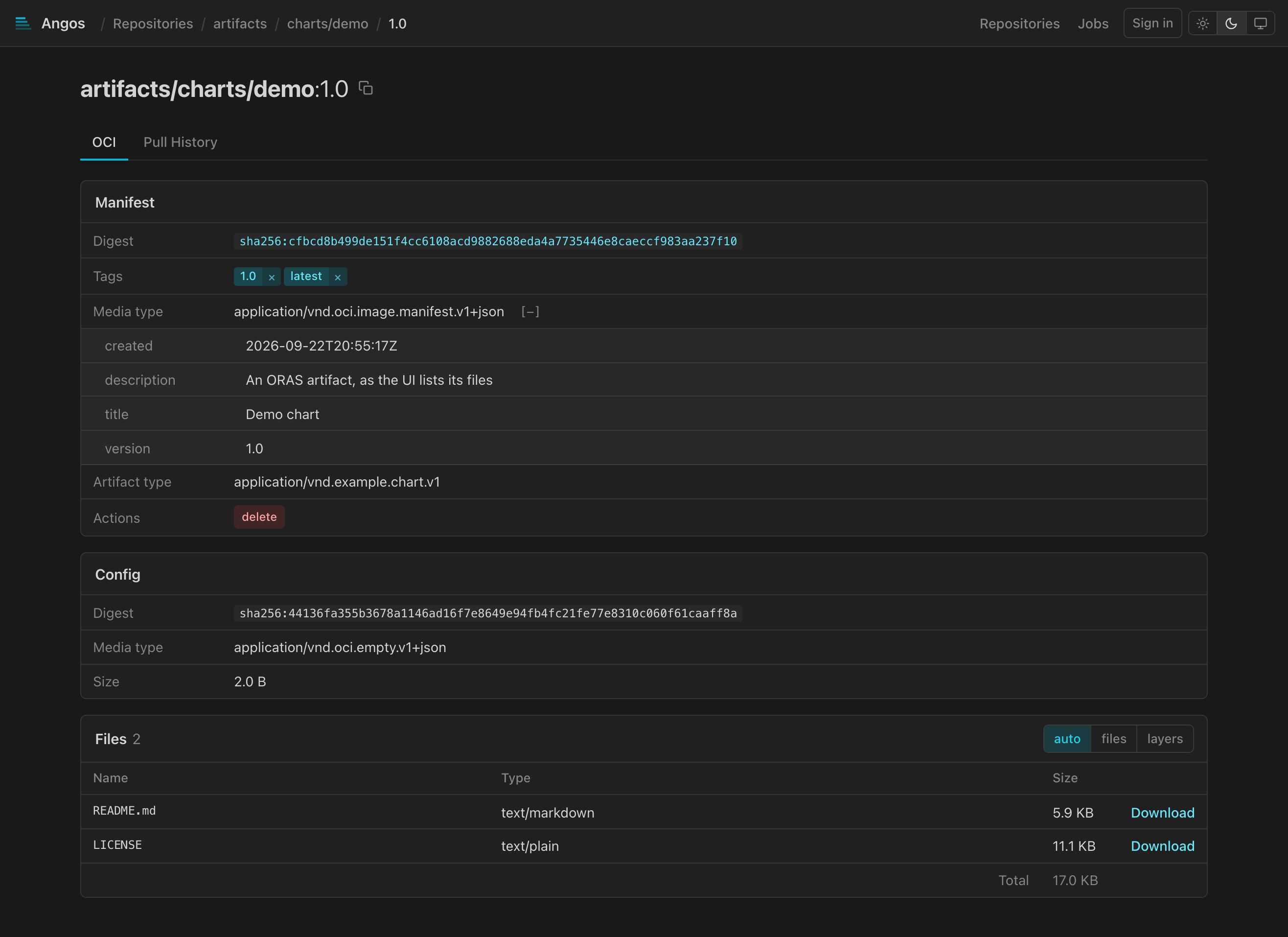

ORAS Artifacts

For OCI artifacts (non-container content), the UI displays:

Filename (from annotations or media type)
Media type
Size
Download button

Download URL format:

/v2/{namespace}/blobs/{digest}

Platform Display

Multi-platform images show platform information:

Badge	Meaning
`linux/amd64`	Linux on x86_64
`linux/arm64`	Linux on ARM64
`linux/arm/v7`	Linux on ARMv7
`windows/amd64`	Windows on x86_64
`unknown`	Platform not specified

Error States

State	Display
Loading	Spinner animation
Not found	404 message with navigation
Unauthorized	Sign-in starts, or a 401 message when already signed in
Forbidden	403 message explaining access denied
Server error	500 message with retry option

Browser Requirements

Modern browser with JavaScript enabled
ES2020+ support (Chrome 80+, Firefox 74+, Safari 14+, Edge 80+)
CSS Grid and Flexbox support

Enable the Web UI - Setup guide
Set Up Access Control - Policy configuration
API Endpoints Reference - Extension APIs used by UI
