Scan Images with an External Scanner

Run a vulnerability scanner on every push and keep its report next to the image as an OCI referrer.

Prerequisites​

  • Angos running
  • A scanner host the registry can reach over HTTP, with the angos binary and Trivy or Grype installed

How It Works​

  1. A push of an image manifest a repository's scan policy applies to enqueues a scan job, keyed on the image digest so repeated pushes coalesce.
  2. The job's handler, in angos worker or in the server's own job loops, asks the scanner service for a report.
  3. angos scanner, on the scanner host, pulls the image under its own identity, runs the scanner you named, and answers with the SARIF report.
  4. The handler pushes the report back as a referrer of the image, an OCI artifact manifest whose subject is the image, through the registry's own write path. It lists under /v2/<name>/referrers/<digest>, replicates with the image, shows in the web UI, and is checked at admission by tools such as Kyverno or the sigstore policy-controller.

The job is durable: a failed scan retries with backoff and dead-letters, a job in flight when a worker dies is re-claimed, and the _angos/jobs admin API lists, retries and deletes scan jobs like any other. The registry runs no scanner itself. A report, an attestation or an index is never a scan subject, and a re-run of a job whose report already exists is a no-op.

Step 1: Give the Scanner an Identity​

The scanner pulls images to analyse them, so it needs read access. On the registry:

[auth.identity.scanner]
username = "scanner"
password = "$argon2id$v=19$m=19456,t=2,p=1$..."   # from `angos argon`

[repository."apps".access_policy]
default = "deny"
rules = [
  "identity.id == 'scanner' && request.action in ['get-manifest', 'get-blob']",
  # ...your usual rules...
]

The report is pushed by the registry's job handler, not by the scanner, so the identity needs no push rights.

Step 2: Enable Scanning on the Registry​

[global.scan]
url = "http://scanner.internal:8766"
token = "scan-service-secret"

[repository."apps".scan]
default = "scan"

A scan table is a policy shaped like an access policy: default = "scan" sends every image pushed here to the service at url, and rules can narrow that to the images that matter, as Step 7 shows. A pull-through cache repository may carry one too: each image manifest a cache miss stores is scanned once, and the report is local metadata that retention reclaims with the cached image. On a busy general-purpose mirror that is one scan per upstream digest pulled, so weigh the scanner time before enabling it there.

Step 3: Run the Scanner Service​

On the scanner host, write the service's configuration. angos scanner reads the [scanner] section alone, so nothing else from the registry's configuration is needed:

[scanner]
port = 8766                        # the port Step 2's URL names
token = "scan-service-secret"      # the same token as in Step 2

[scanner.registry]
url = "https://registry.example.com"
username = "scanner"
password = "..."                   # the scanner identity's password

Then, with grype or trivy on PATH:

RUST_LOG=info angos -c scanner.toml scanner grype

At info it logs one line per image scanned. See the configuration reference for the other options.

The same service runs as a container from the registry image, with the scanner's own image mounted read-only on PATH. The registry image has no /tmp and nothing writable, so mount a directory there for the scanner's temporary files and its database (XDG_CACHE_HOME), world-writable since the image runs as user 65534. Docker calls image mounts experimental and needs the image pulled first:

mkdir -m 1777 scanner-tmp
docker pull anchore/grype:latest
docker run -d -p 8766:8766 -v "$PWD/scanner.toml:/scanner.toml" -v "$PWD/scanner-tmp:/tmp" \
  --mount type=image,source=anchore/grype:latest,target=/opt/scanner \
  -e PATH=/opt/scanner:/opt/scanner/usr/local/bin -e XDG_CACHE_HOME=/tmp \
  ghcr.io/project-angos/angos:latest -c /scanner.toml scanner grype

For Trivy, mount aquasec/trivy:latest instead; the PATH above covers both layouts. A --tmpfs /tmp works too, but then Grype's database, about two gigabytes, lives in memory and is fetched on every start. On Kubernetes 1.35 or later an image volume mounts the same image at the same path, with an emptyDir on /tmp:

containers:
  - image: ghcr.io/project-angos/angos:latest
    args: [-c, /scanner.toml, scanner, grype]
    env:
      - { name: PATH, value: /opt/scanner:/opt/scanner/usr/local/bin }
      - { name: XDG_CACHE_HOME, value: /tmp }
    volumeMounts:
      - { name: scanner, mountPath: /opt/scanner, readOnly: true }
      - { name: tmp, mountPath: /tmp }
volumes:
  - name: scanner
    image: { reference: anchore/grype:latest, pullPolicy: Always }
  - { name: tmp, emptyDir: {} }

Step 4: Drain the Scan Queue​

With [global.job_queue] configured, scan jobs are durable and a worker drains them:

angos -c config.toml worker --queue scan

A plain angos worker drains the scan queue as well whenever [global.scan] is set. Without [global.job_queue], the server drains its own in-process queue and no worker is needed. max_concurrent_scan_jobs (default 2) bounds the scans in flight per process.

Step 5: Push and Verify​

Push an image into a scanning repository:

docker push registry.example.com/apps/web:1.0

The job appears under GET /v2/_angos/jobs/list?queue=scan, and under the scan queue of the web UI's Jobs page, until the report lands. The report then lists as a referrer:

oras discover registry.example.com/apps/web:1.0

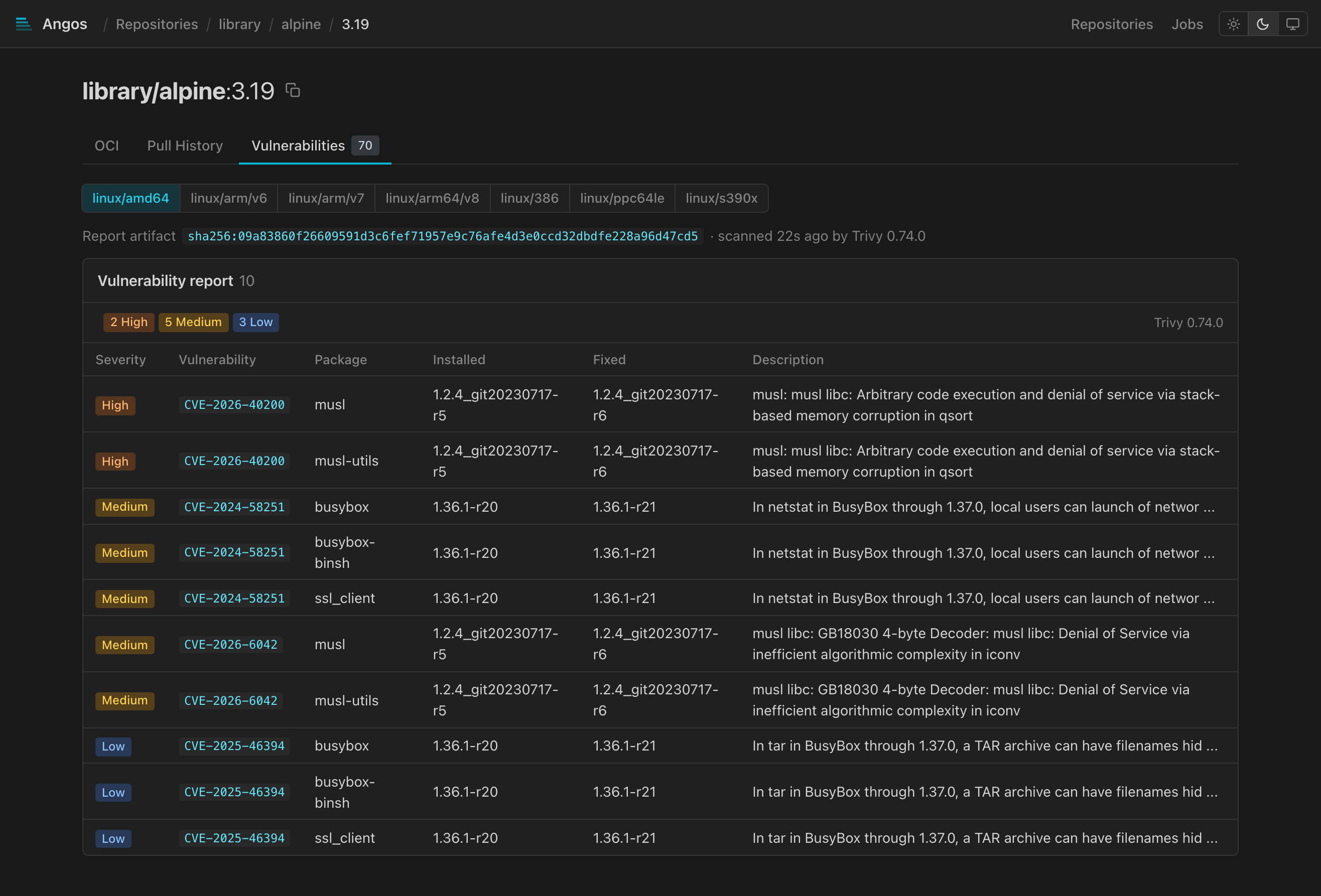

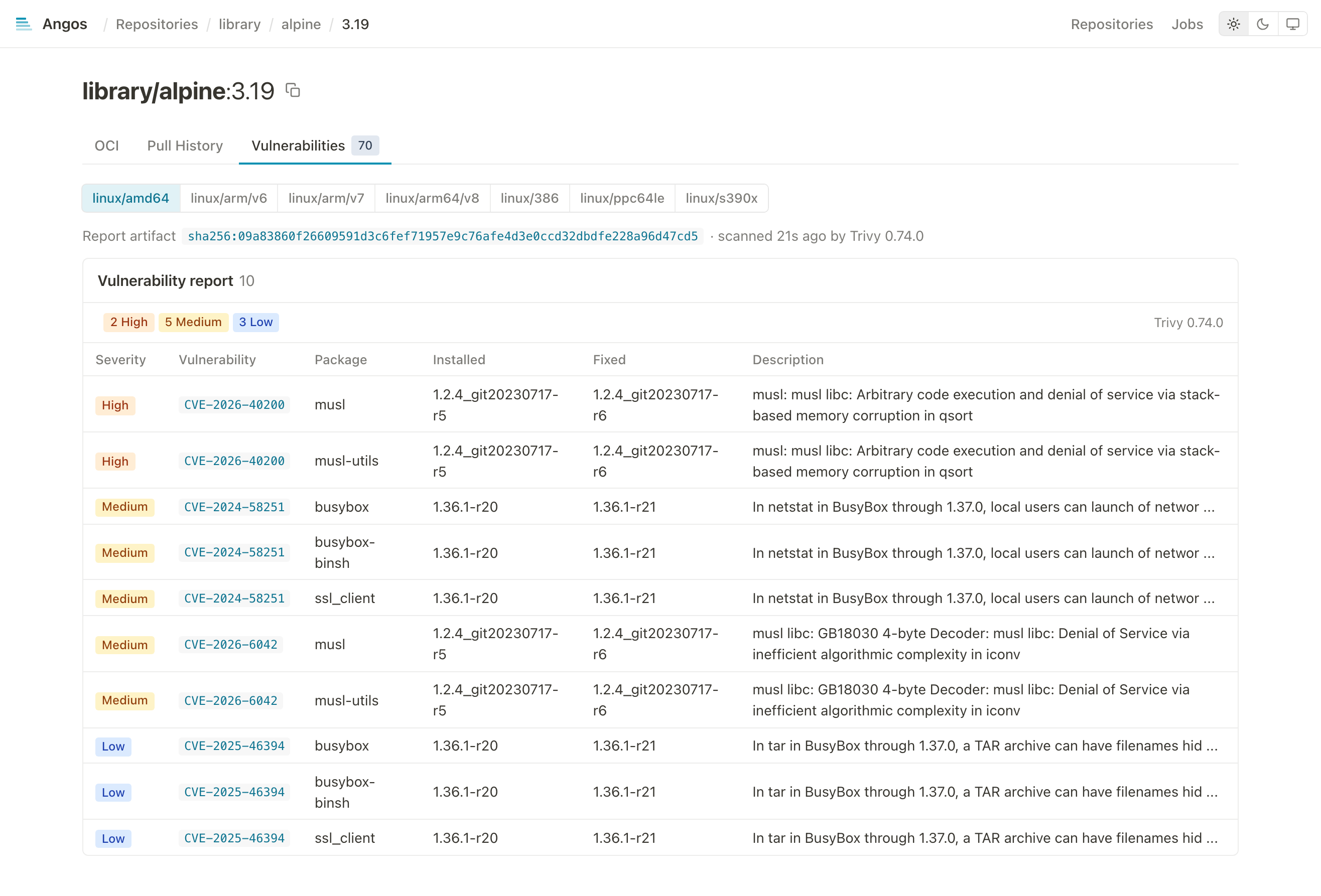

The web UI shows it on the manifest's Vulnerabilities tab, whichever scanner wrote it, listing every finding with its package, fixed version and advisory link, and badges the report in the tree with the severity counts.

Vulnerabilities tab showing a scan reportVulnerabilities tab showing a scan report

Step 6: Scan What Was Already There​

A policy covers pushes from then on. Give the images already in the repository a report with:

angos -c config.toml reconcile scan

It enqueues one job per image manifest the policy applies to, judged with the time of its newest report as Step 7 describes; --dry-run lists them, and --force scans every image again, attaching a fresh report to each. The server or a worker drains the jobs as usual.

Step 7: Refresh Reports on a Schedule​

A report ages as the scanner's database learns new vulnerabilities. The scan policy decides that too: angos reconcile scan judges every image again with image.scanned_at, the time of its newest report, so a rule on that age refreshes reports:

[global.scan]
url = "http://scanner.internal:8766"
rules = ["image.scanned_at < now() - days(30)"]

[repository."apps".scan]
rules = [
  "image.scanned_at < now() - days(7) && (image.tag == 'latest' || top_pulled(20))",
]

default is what an image no rule matches gets, scan or skip, and skip when absent; an image a rule matches gets the opposite. rules are CEL expressions over the retention variables plus image.scanned_at. A new image was never scanned, so image.scanned_at is 0 there and an age rule scans it as it lands; the tags it is pushed under are the whole ranking then, and it has never been pulled. On a reconcile scan run the image is judged with its real times, under each of its tags in turn and untagged with image.tag == null, as retention judges it. Leave default unset when the rules say when to scan: with default = "scan" a matching rule skips instead. A repository's table replaces the global policy, a table sets at least one of the two keys, and a rule using last_pulled_at or top_pulled needs update_pull_time = true, as retention does.

Nothing runs the pass on its own: schedule angos reconcile scan like prune, with a CronJob or a systemd timer, at the cadence the rules call for. A run reads every image of the scanning repositories once, one manifest read and one referrer listing each, enqueues a scan for each one the policy applies to, and logs how many; a run that finds nothing due enqueues nothing, and a scan enqueued twice coalesces on the image. A daily run refreshes a report within a day of its rule coming true:

apiVersion: batch/v1
kind: CronJob
metadata:
  name: registry-scan-refresh
spec:
  schedule: "0 4 * * *"
  jobTemplate:
    spec:
      template:
        spec:
          containers:
            - name: refresh
              image: ghcr.io/project-angos/angos:latest
              args: ["-c", "/config/config.toml", "reconcile", "scan"]
              volumeMounts:
                - name: config
                  mountPath: /config
                  readOnly: true
          volumes:
            - name: config
              secret:
                secretName: registry-config
          restartPolicy: OnFailure

The kustomize contrib ships this CronJob as its reconcile-scan component.

A new report supersedes the older ones, and retention reclaims them: angos prune judges a superseded report like any untagged manifest, pushed_at being when it was attached, so image.pushed_at > now() - days(30) keeps a month of report history, a tag-only policy reclaims it at the next run, and a registry without retention rules keeps it. Only the newest report of an image stays shielded by it, as every report or attestation angos did not write does. The web UI shows the newest report by its created annotation either way.

Notes​

  • The scanner's database. The service pulls Grype's database when it starts, refusing to start without one, and refreshes it once a day; a scan never updates it. Trivy refreshes its own during scans. Keep the scanner itself current: an old release is tied to a retired database feed and never finds a newer one.
  • Trivy scans one image at a time. It locks its cache directory, so the service ignores max_concurrent_scans for Trivy; run several services on several hosts to scan in parallel. Grype scans concurrently.
  • The scanner service is stateless. POST /scan with {"namespace": ..., "digest": ...} answers the SARIF report; the service holds only its pull identity and can be scaled or replaced independently of the registry.
  • The report is a plain OCI artifact. An empty config, one SARIF layer, artifactType: application/sarif+json, and the image as subject. Nothing is written under cosign's fallback tags, so nothing counts against top_pushed and top_pulled rankings.
  • A scan is bounded by timeout_secs (default 600) on the registry side; a scanner that overruns fails the job, which retries.

Retention​

A report follows its image: angos prune skips it while the image resolves and reclaims it with the image. Attaching a report never keeps an image alive. A report a newer angos report has superseded is the exception: prune judges it by the retention rules like any untagged manifest. See Configure Retention Policies.

Enforcement​

Angos does not block a pull on a scan result. Enforce at admission, where the same referrers are read: Kyverno verifyImages and the sigstore policy-controller check an attestation by predicate type, for example https://cosign.sigstore.dev/attestation/vuln/v1 for a report attached with cosign attest --type vuln.
